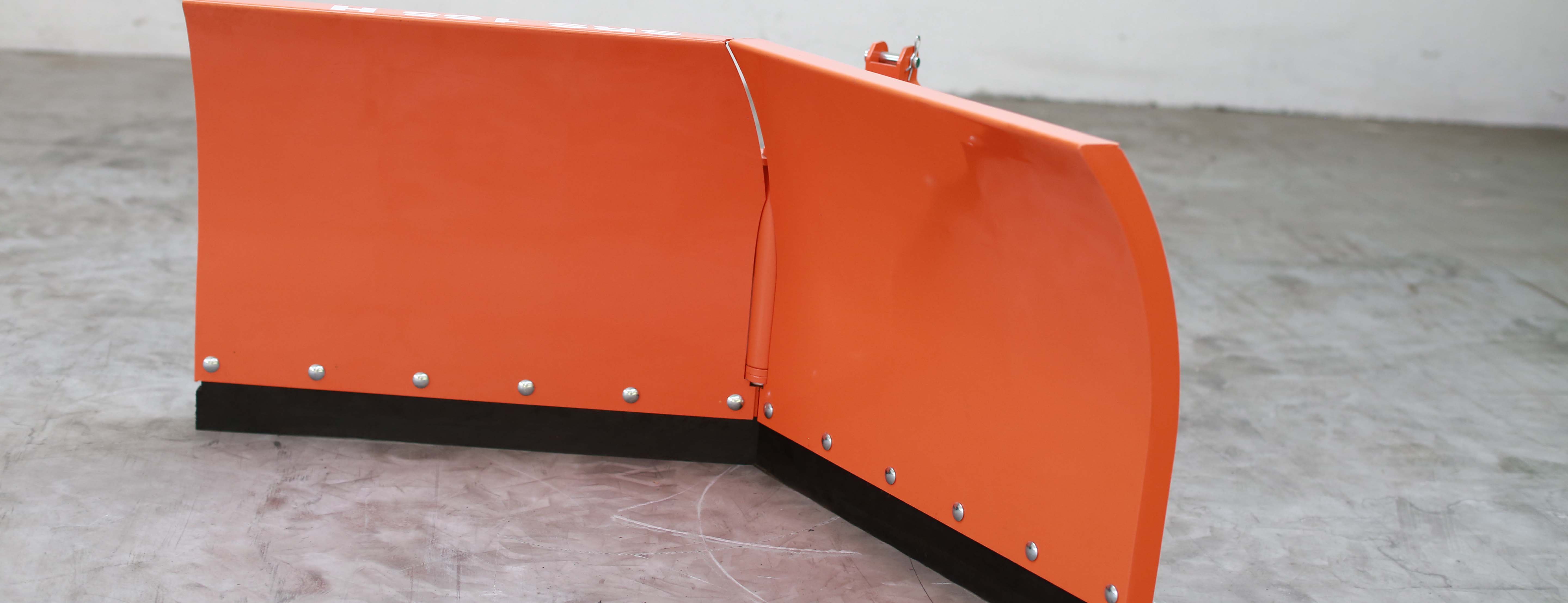

SRS-205H / 188H / 165H / 140H / 120H Front Arrow Ploughshare with Hydraulic Control


The arrow blade is primarily intended for sweeping and raking loose materials and snow from handling areas and roads. The blade is hydraulically tilted by hydraulics directly from the driver's seat, which facilitates its handling. One straight hydraulic motor controlled directly from the driver's seat controls the tilting or opening and closing of the arrow. This change is done mechanically using 2 pcs of rods. On request, a second straight hydraulic motor can be supplied instead of 2 rods and thus control both wings separately directly from the driver's seat. The blade is equipped with a rubber blade for snow. The blade can be applied using the front three-point hitch of the ISO730 / 1N category. For easier application to the compact tractor, the DRZ-123 quick coupler can be purchased. On request, the arrow ploughshare can be supplied in a width of 10 mm from 1200 mm.

Are you interested?

Send us a non-binding request and we will get back to you.

If you have additional questions, contact us or come to our showroom in Prostějov.

Shop Šálek s.r.o.
Vrahovická 2527/5
796 01 Prostějov

Download

Technical details

SRS-120H SRS-140H SRS-165H SRS-188H SRS-205H
Price without VAT 2,268.56 EUR 2,360.22 EUR 2,451.88 EUR 2,589.37 EUR 2,681.03 EUR
Price with VAT 2,744.96 EUR 2,855.87 EUR 2,966.77 EUR 3,133.13 EUR 3,244.04 EUR
Max. width 1200 mm 1400 mm 1650 mm 1880 mm 2050 mm
Min. width 1010 mm 1180 mm 1395 mm 1585 mm 1730 mm
Height 500 mm 500 mm 500 mm 500 mm 500 mm
Weight 105 kg 110 kg None None None
Maximum angular displacement 34 34 34 34 34

DIMENSIONS

DIMENSIONS

Multimedia SRS-205H / 188H / 165H / 140H / 120H Front Arrow Ploughshare with Hydraulic Control
