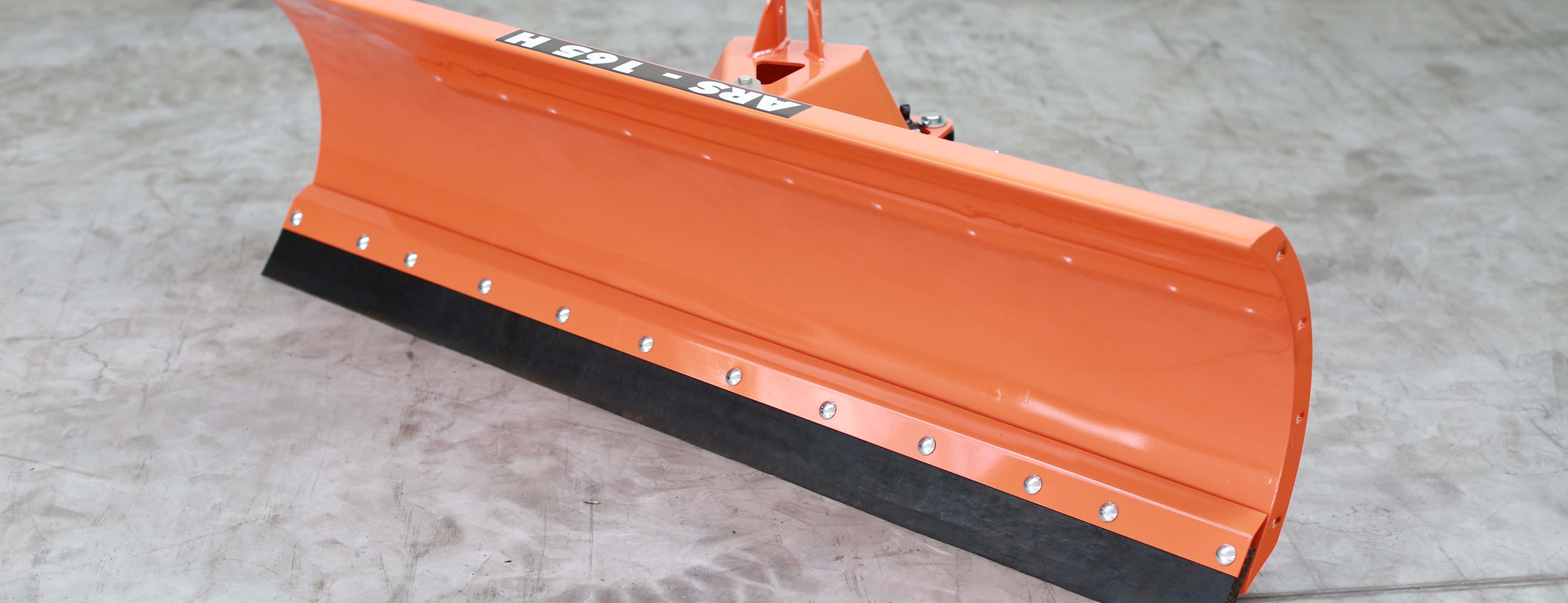

RAZ-001 Rear Ploughshare


This ploughshare is designed for snow removal from handling places, gardens, pavements, roads etc. It is also used for removal of soil, sand or dry excrements from stabling spaces etc. It is possible to carry out mechanical angular displacement in the horizontal plane bilaterally through angles up to 45°. Leading features of the plough share RAZ-001  are utilisation in objects with limited spaces, easy coupling and uncoupling and comfortable working control. It can be coupled through the quick-closing device DRZ 103 (not included in the share delivery). This plough share is designed for coupling with all types of compact tractors equipped with the three-point hitch ISO 730/1N. In case of small tractors TK-12, TZ-4K-14 and MT8-132.2 it is necessary to couple the ploughshare by means of the quick-coupling device RZ-1. This implement can be optionally supplied with a rubber blade extension.

Are you interested?

Send us a non-binding request and we will get back to you.

If you have additional questions, contact us or come to our showroom in Prostějov.

Shop Šálek s.r.o.
Vrahovická 2527/5
796 01 Prostějov

Download

Technical details

RAZ-001
Price without VAT 1,283.23 EUR
Price with VAT 1,552.70 EUR
Length 850 mm
Working width of blade 1 500 mm
Maximum working height 600 mm
Maximum angular displacement 45°
Weight 72 kg

DIMENSIONS

DIMENSIONS

Accessories

Type Name Price without VAT Price with VAT Photo
GB-1500 Rubber Blade for Snow L=1500 190.19 EUR 230.11 EUR
DRZ-103 Triangular Quick Coupler 210.82 EUR 255.09 EUR
