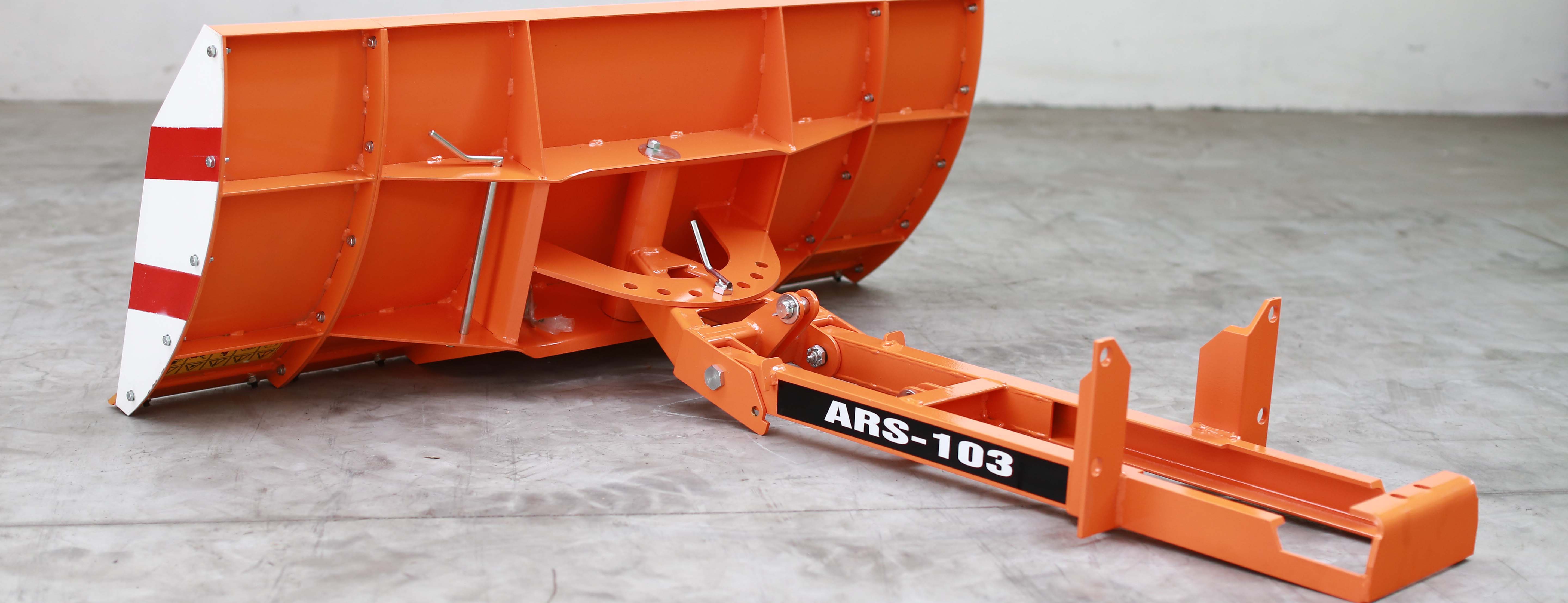

ARS-103 Front Hydraulic Ploughshare


This plough share is designed for snow removal from handling places, gardens, pavements, roads etc. It is also used for removal of soil, sand or dry excrements from stabling spaces etc.

Leading features of plough share ARS-103:
– utilisation in objects with limited spaces
– easy coupling and uncoupling
– comfortable working control
– adjustable in two operating widths

Possible mechanical angular displacement in the horizontal plane bilaterally through angles up to 45°. The plough share ARS-171 can be coupled with a front three-point hitch through the quick-closing device DRZ 103. The plough share can be used with all types of small tractors equipped with a front three-point hitch. The plough share ARS-103 can be coupled through a special frame fixed on the bottom part of the tractor gearbox and used for coupling with small tractors TK-10, 12, TZ-4K-14, MT8-132, MT8- 232 and Vega.

Are you interested?

Send us a non-binding request and we will get back to you.

If you have additional questions, contact us or come to our showroom in Prostějov.

Shop Šálek s.r.o.
Vrahovická 2527/5
796 01 Prostějov

Download

Technické parametry

ARS-103
Length of tractor with ploughshare 2 920 mm
Max. working width 1 500 mm
Min. working width 1 000 mm
Maximum working height 600 mm
Weight 113 kg
Maximum angular displacement 45°
Cena bez DPH 29,000 Kč
Cena S DPH 35,090 Kč

Rozměry

Rozměry

Doplňky

Typ Název Cena bez DPH Cena s DPH Foto
GB-1500 Rubber Blade for Snow L=1500 2,900 Kč 3,509 Kč

Multimedia ARS-103 Front Hydraulic Ploughshare
