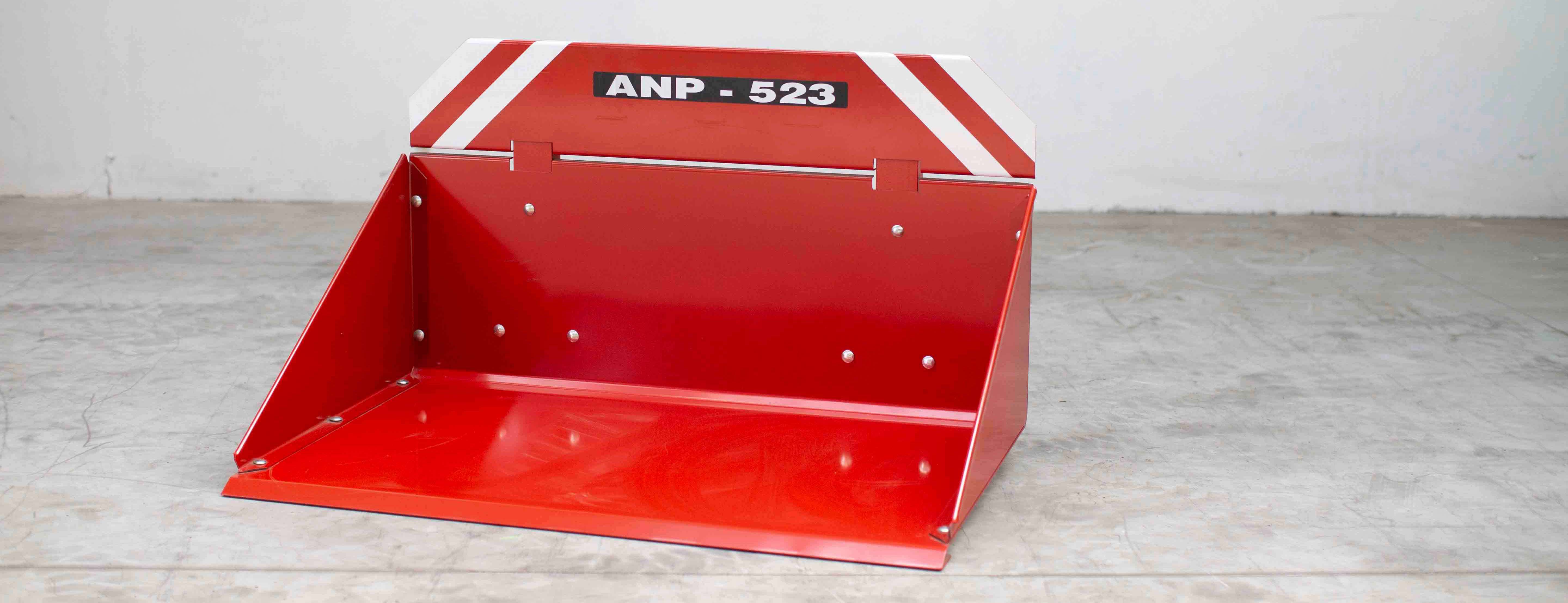

APN-523 Loading Platform


The loading platform ANP-523 is designed especially for utilisation in agriculture, gardening, vegetable farms, building industry and in-house transport. It comprises a fork for lifting and transport of pallets and an all-metal platform with sideboards used especially for loose materials and part loads. This loading platform can be coupled with all types of compact tractors equipped with the three-point hitch ISO 730/1N. In case of small tractors TK-12, TZ-4K-14 and MT8- 132.2 it is necessary to couple the platform by means of the quick-coupler FDZ-187.

Are you interested?

Send us a non-binding request and we will get back to you.

If you have additional questions, contact us or come to our showroom in Prostějov.

Shop Šálek s.r.o.
Vrahovická 2527/5
796 01 Prostějov

Download

Technical details

APN-523
Price without VAT 1,283.23 EUR
Price with VAT 1,552.70 EUR
Length 850 mm
Width 1 300 mm
Height 720 mm
Weight 89 kg
Loading area 0,9 m2
Fork spacing fixed 720 mm
Max. carrying capacity 300 kg

DIMENSIONS

DIMENSIONS

Accessories

Type Name Price without VAT Price with VAT Photo
HTBZ Hydraulic Third Point (430 mm) 224.56 EUR 271.72 EUR

Multimedia APN-523 Loading Platform
