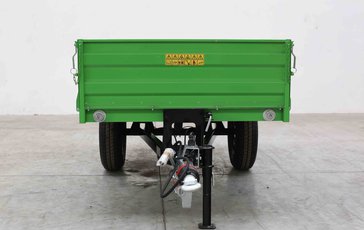

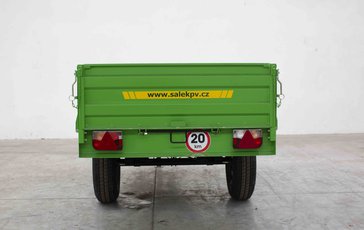

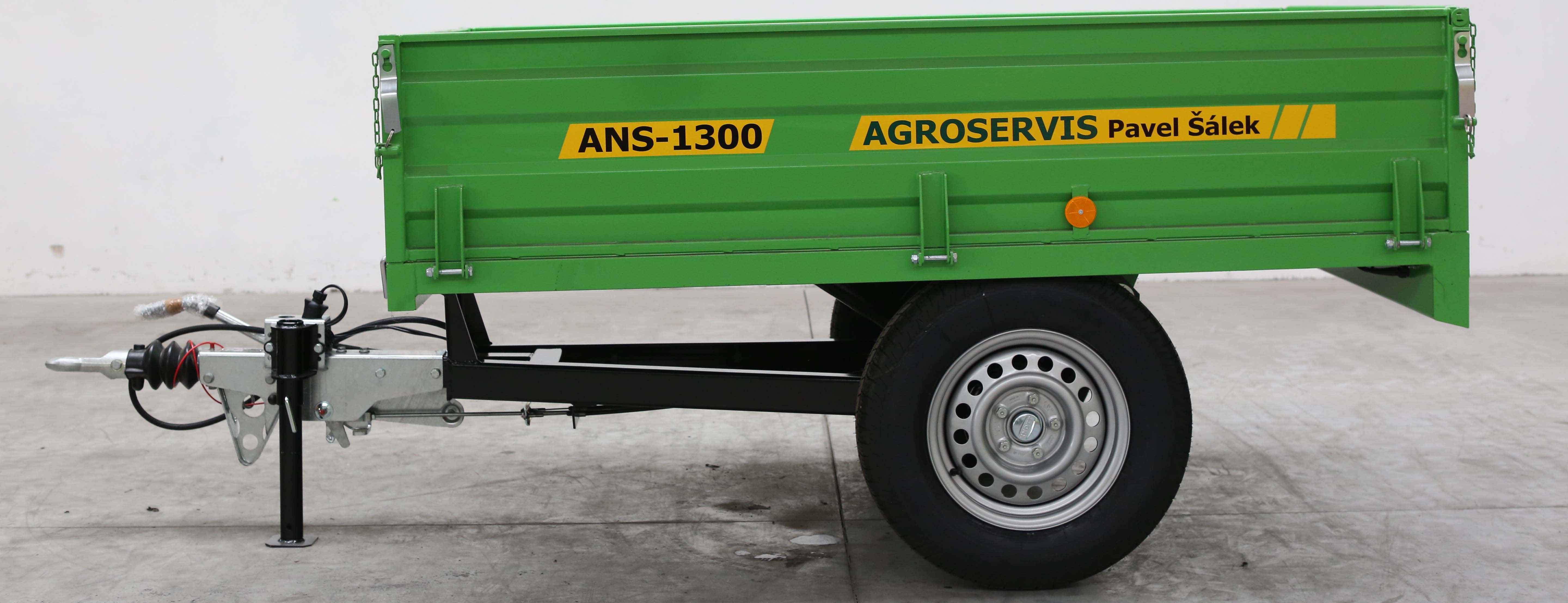

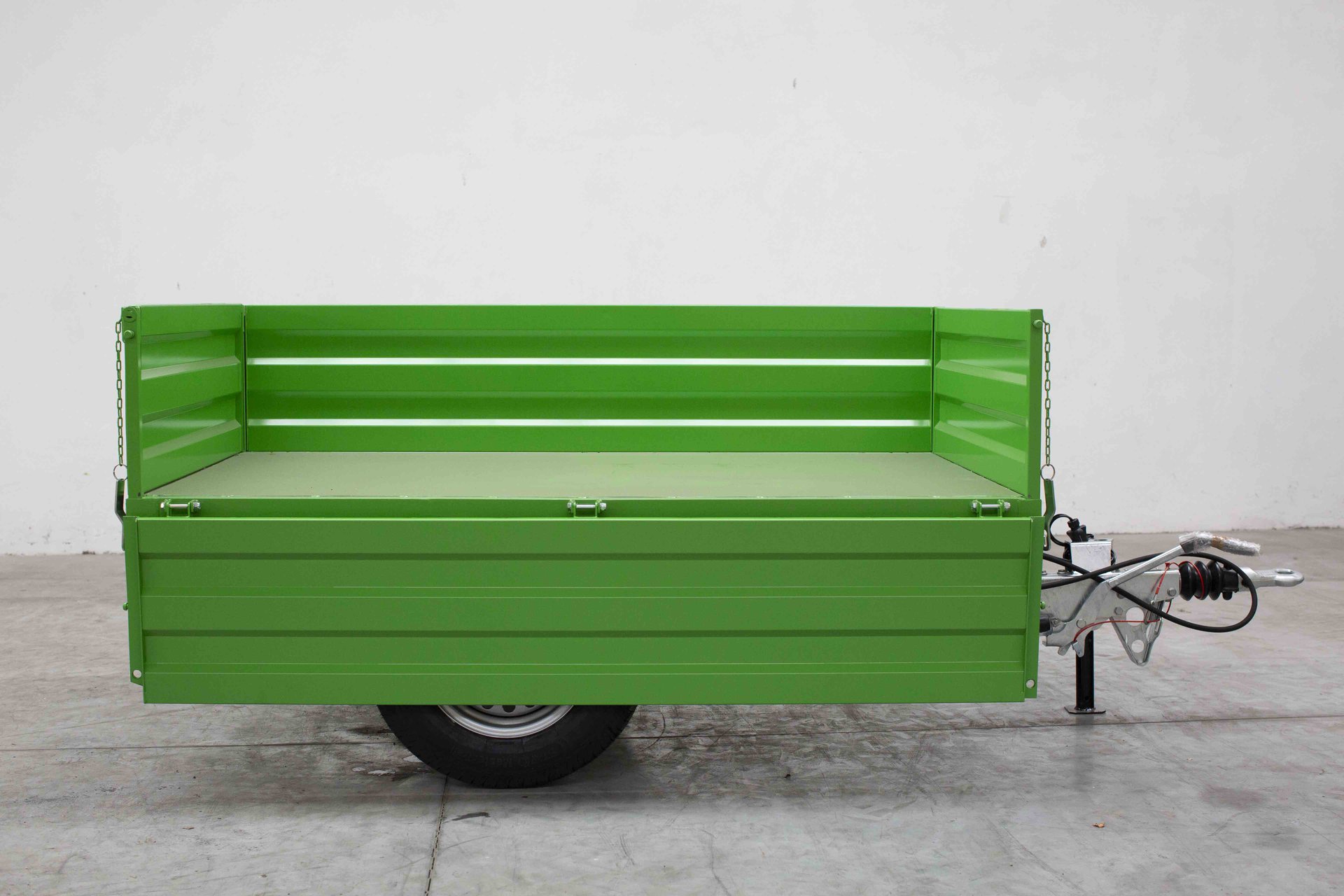

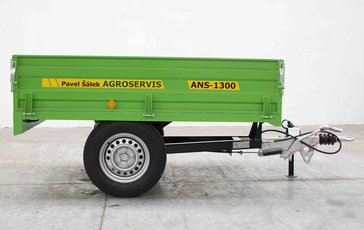

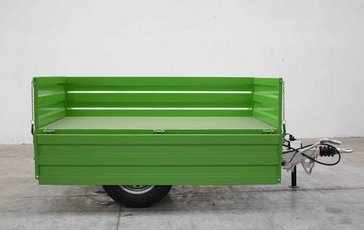

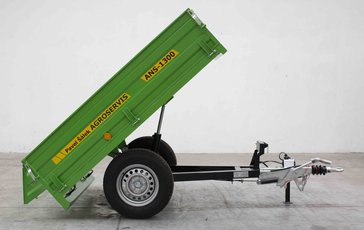

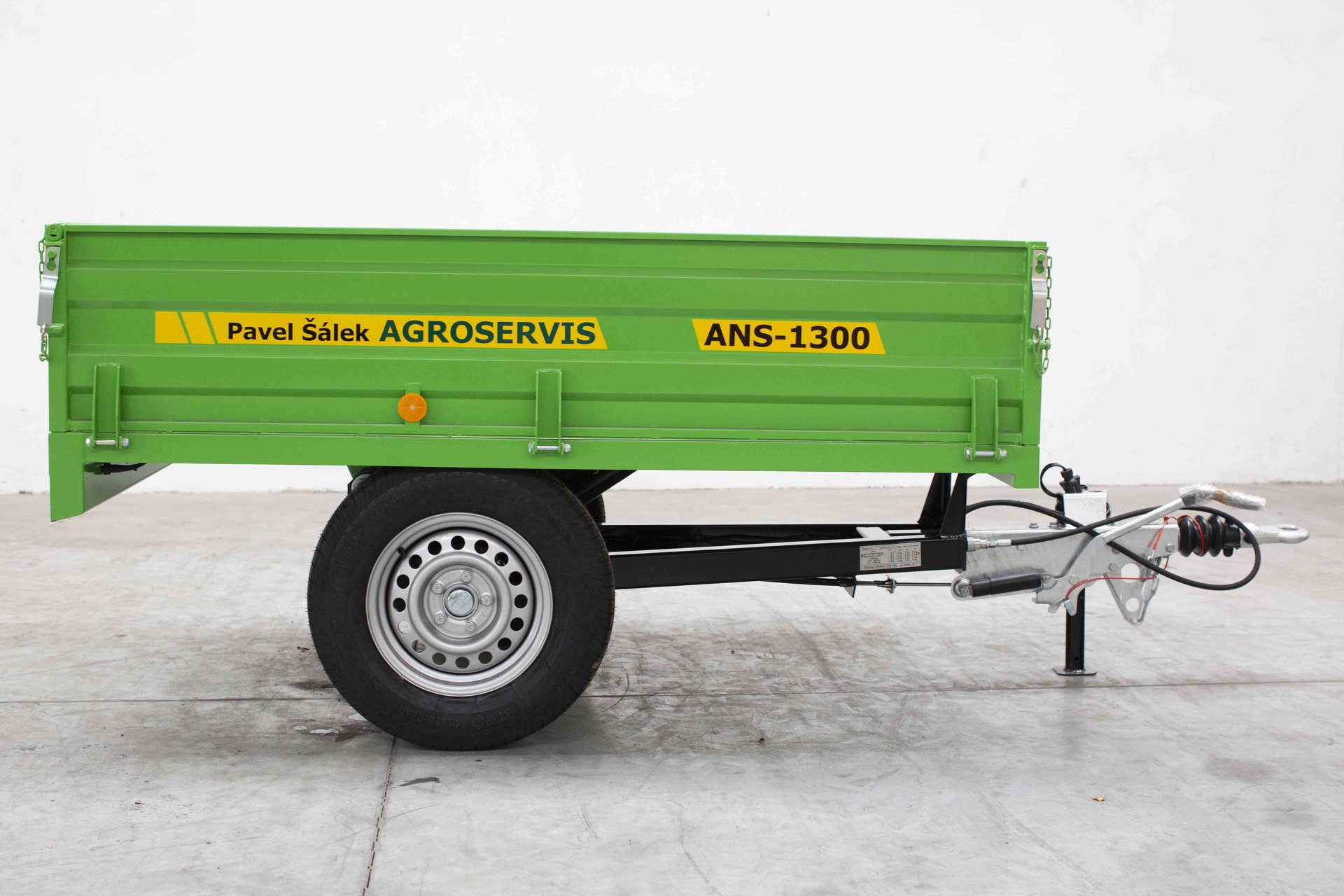

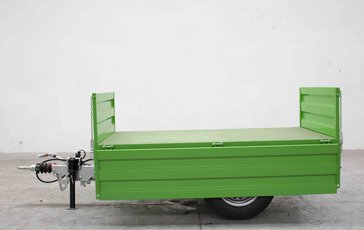

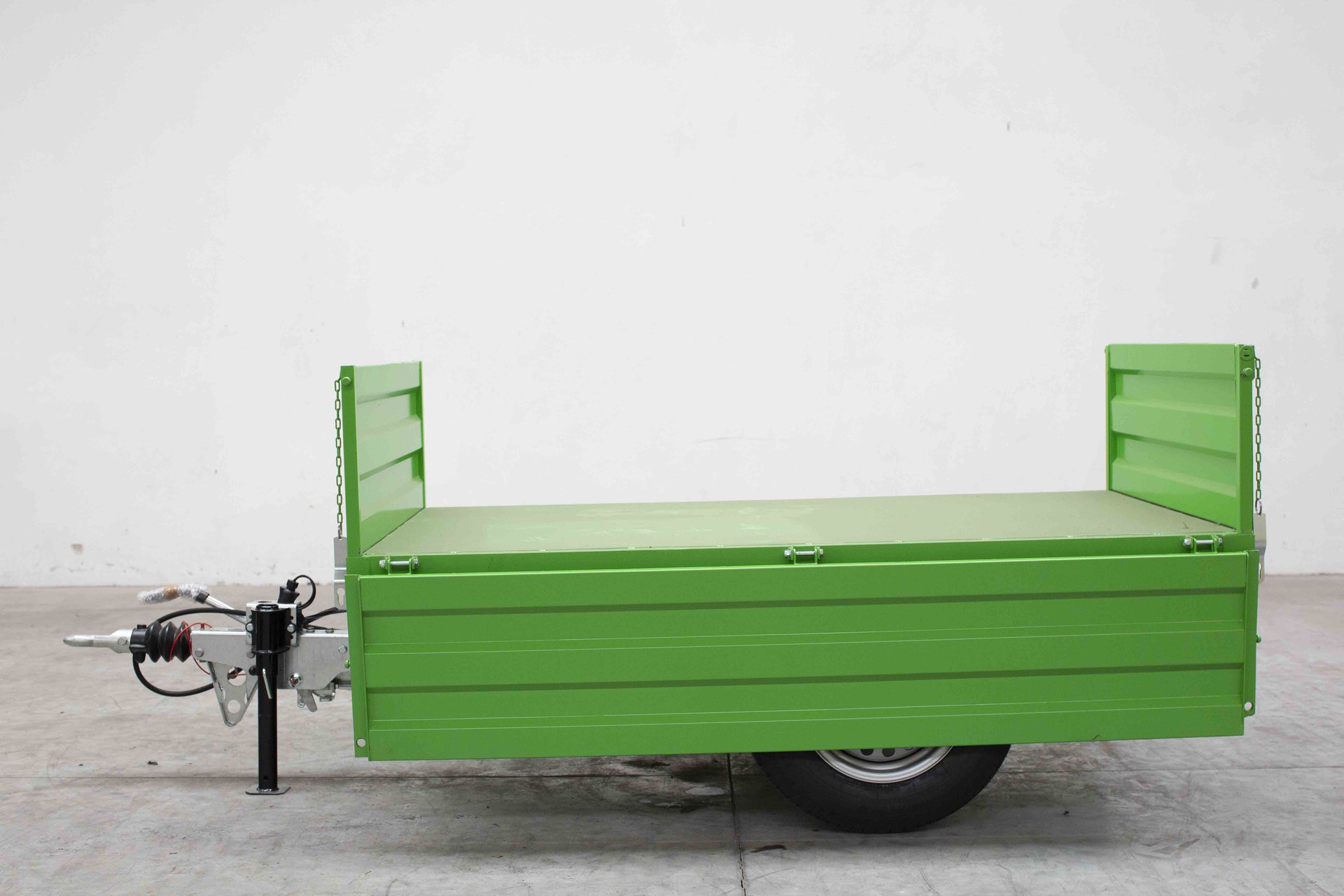

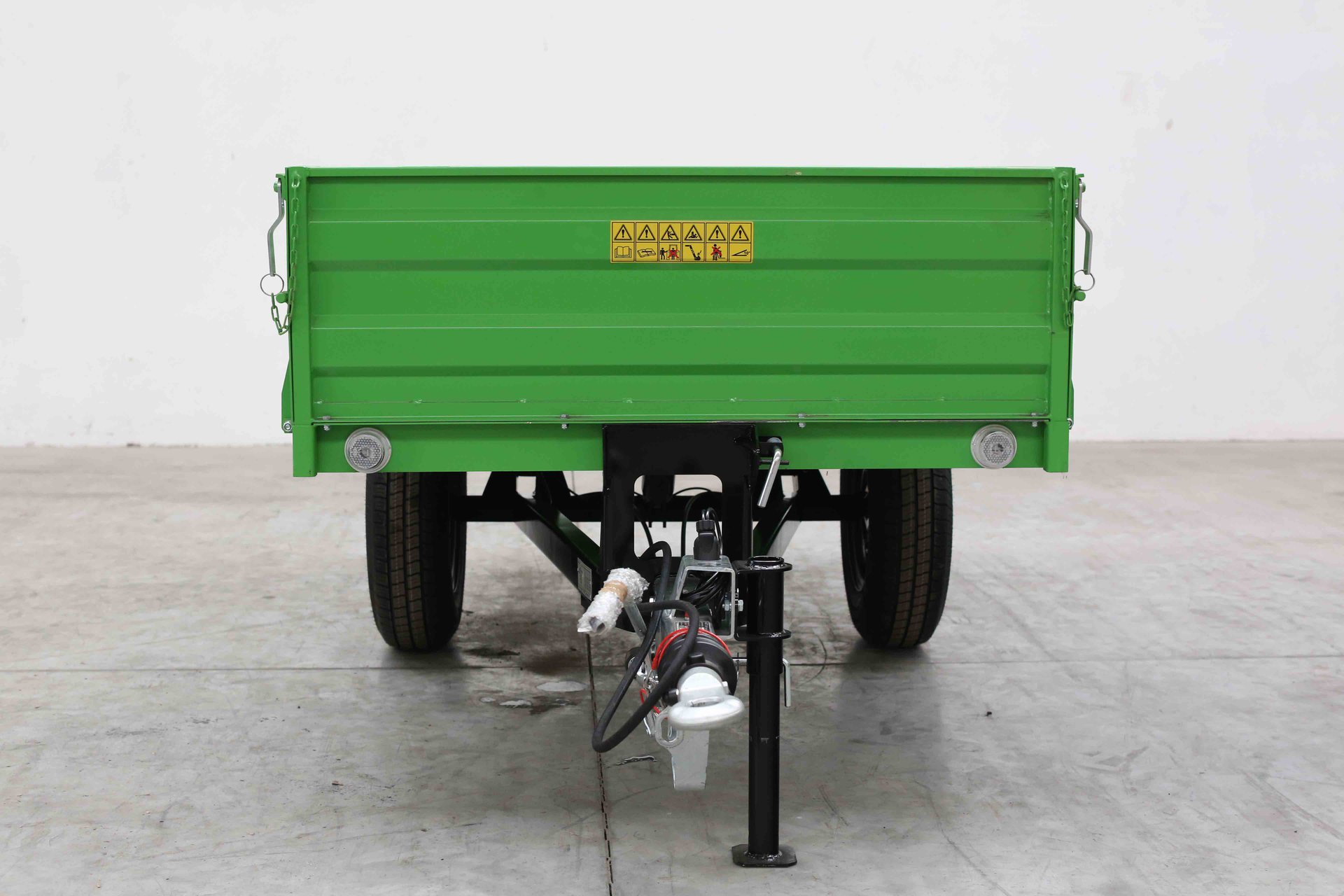

ANS-1300 One-Side Tipping Trailer

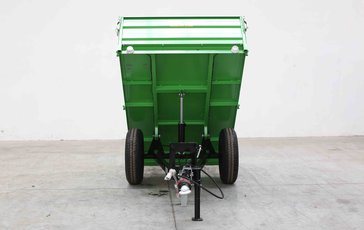

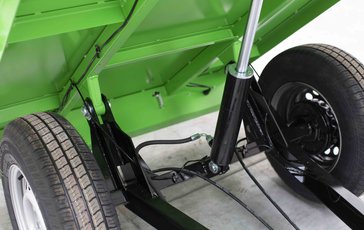

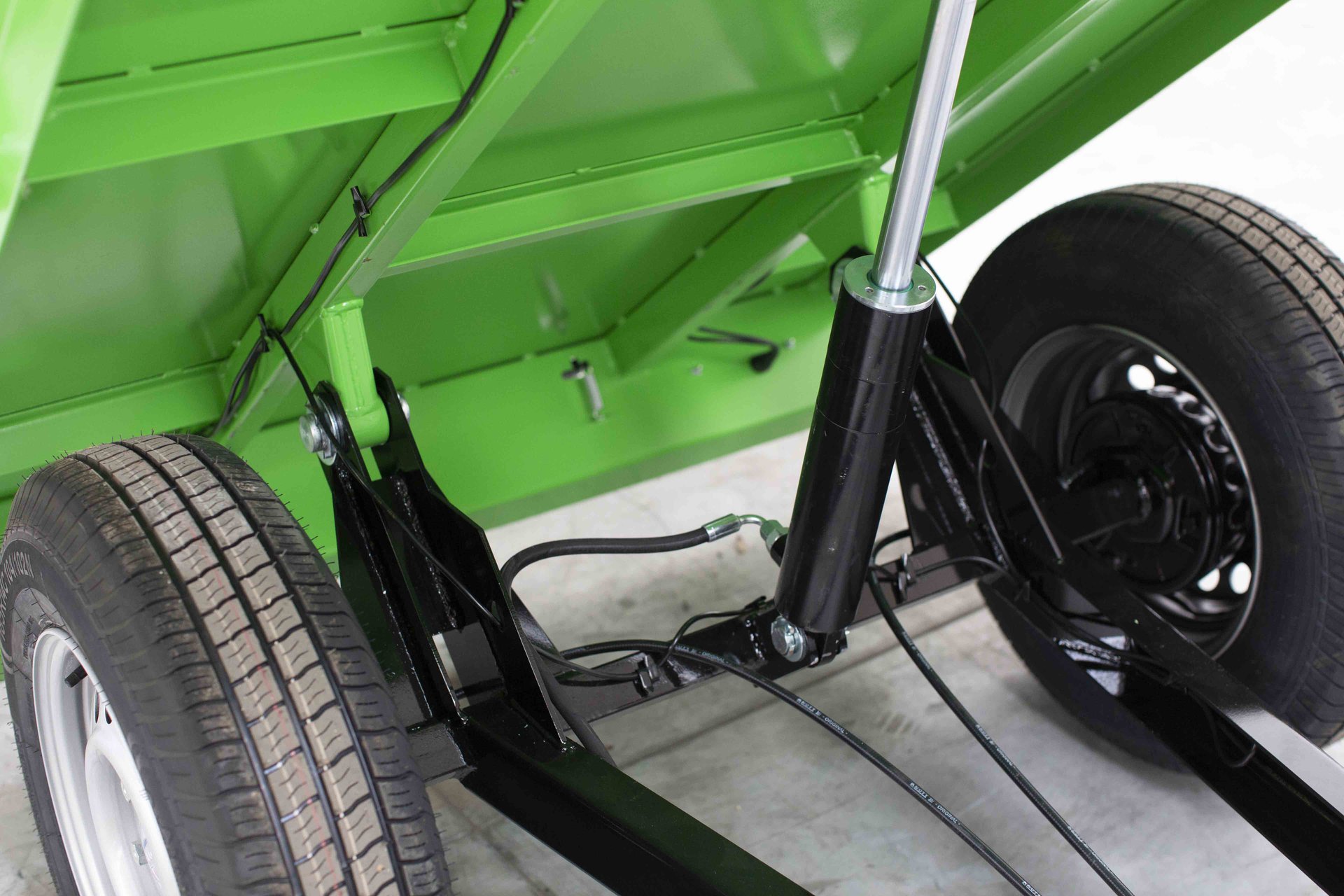

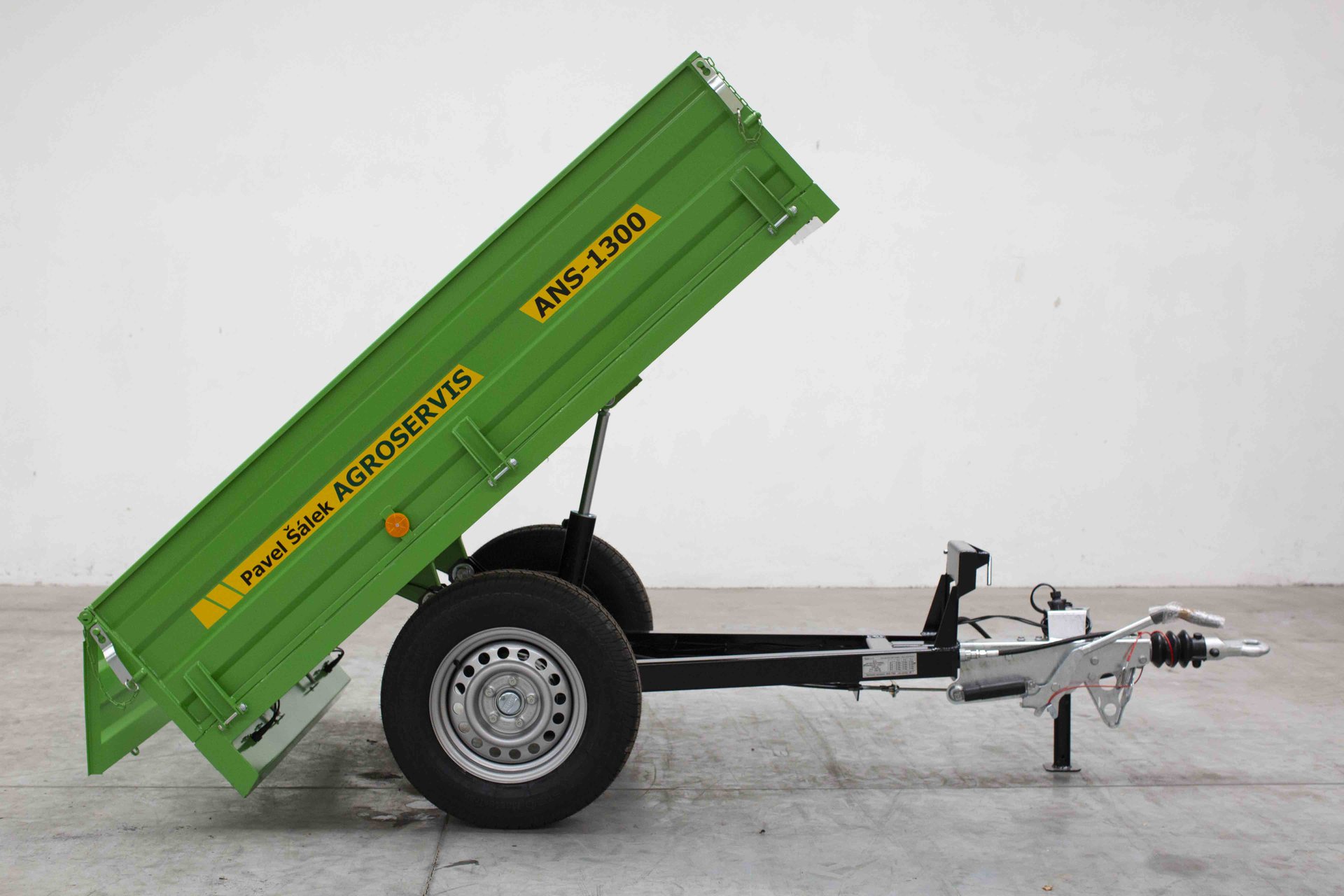

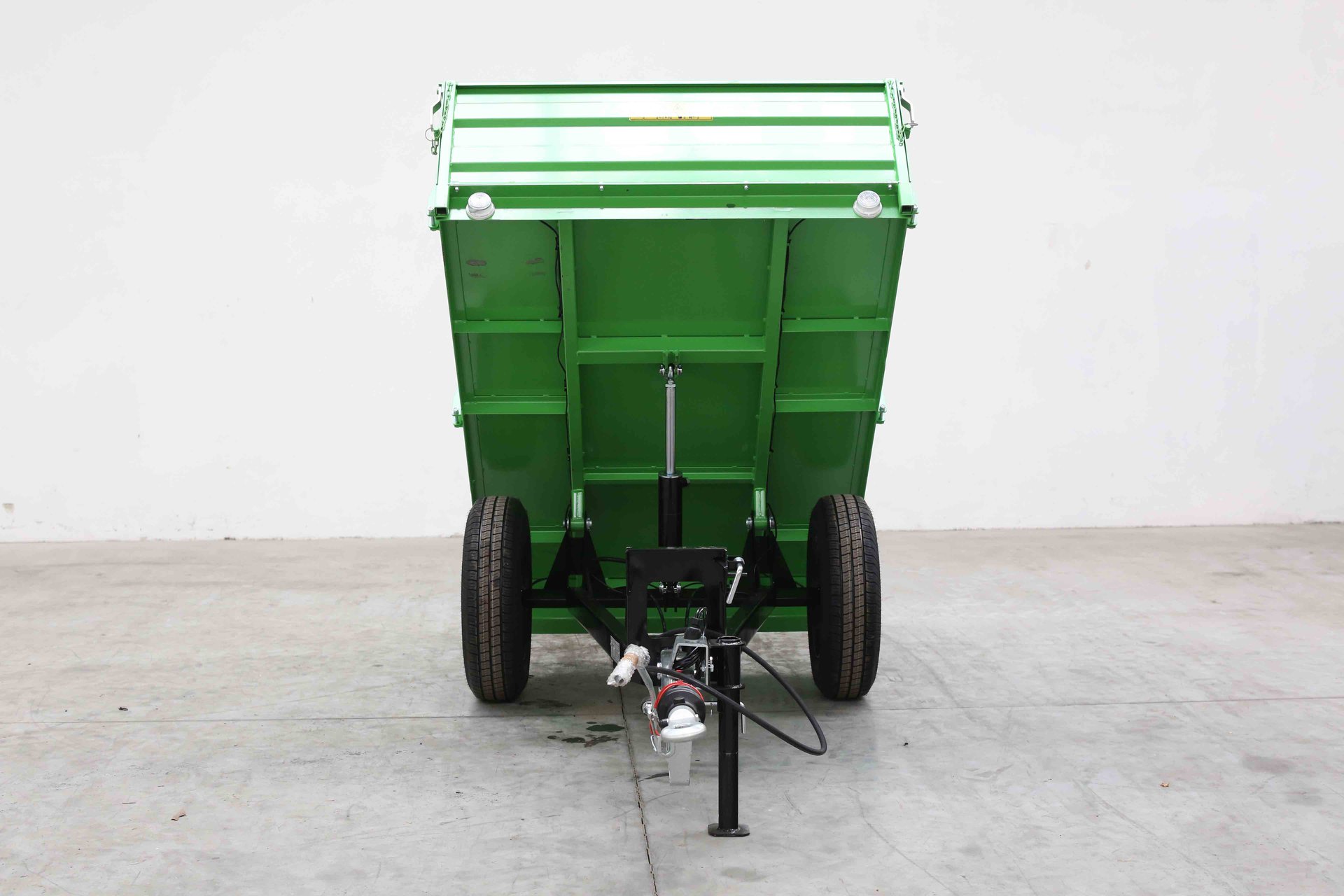

The tipping trailer ANS-564 is designed especially for utilisation in agriculture, forestry, gardening, vegetable farms, building industry and local transport. It is used especially for loose materials and part loads. Its body can be tipped backwards by means of the tractor hydraulics, i.e. controlled directly from the driver’s cab. The body itself comprises hinged sideboards (completely detachable). The trailer brake system is mechanical being controlled by an overrun brake. This trailer is designed for coupling with small tractors of all types.

Are you interested?

Send us a non-binding request and we will get back to you.

If you have additional questions, contact us or come to our showroom in Prostějov.

Shop Šálek s.r.o.
Vrahovická 2527/5
796 01 Prostějov

Download

Technical details

ANS-1300
Lenght 2 820 mm
Width 1 320 mm
Height 1 060 mm
Weight of trailer 285 kg
Loading area 2,50 m2
Loading space 1,062 m3
Wheel track 1 075 mm
Payload 1 000 kg
Towing eye 40 mm
Tipping angle 39°
Price without VAT 3,243.02 EUR
Price with VAT 3,924.06 EUR

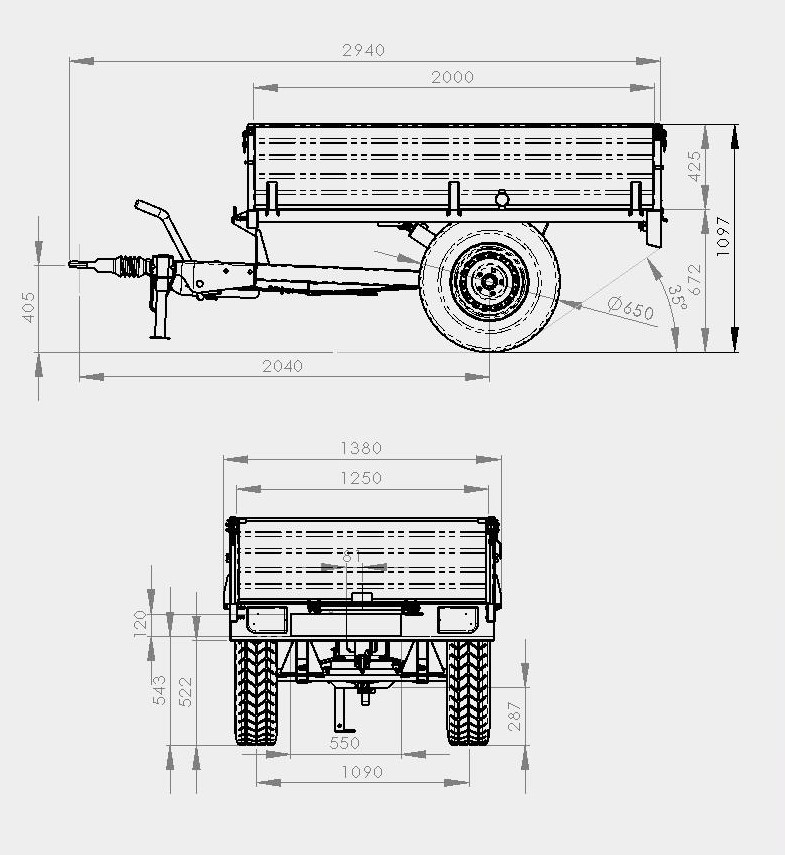

DIMENSIONS

DIMENSIONS

Accessories

Type Name Price without VAT Price with VAT Photo
ANS-1300/a Extension of Trailer 800 mm (Full / Net) 1300 1,149.43 EUR 1,390.80 EUR

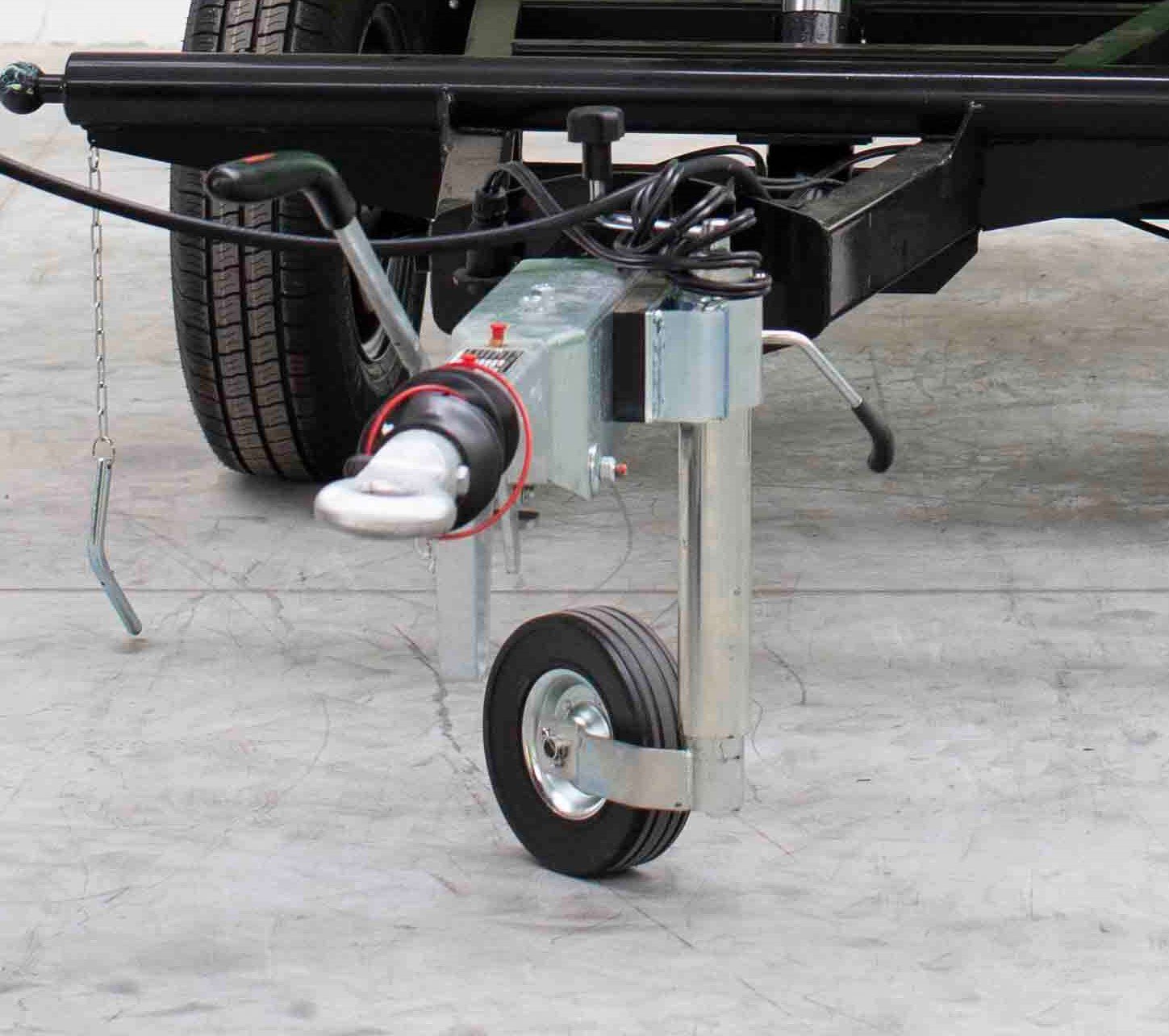

PKS-564 Support Adjustable Wheel 143.68 EUR 173.85 EUR
ANS-1300/c Extra Galvanizing 328.41 EUR 397.37 EUR

Multimedia ANS-1300 One-Side Tipping Trailer
