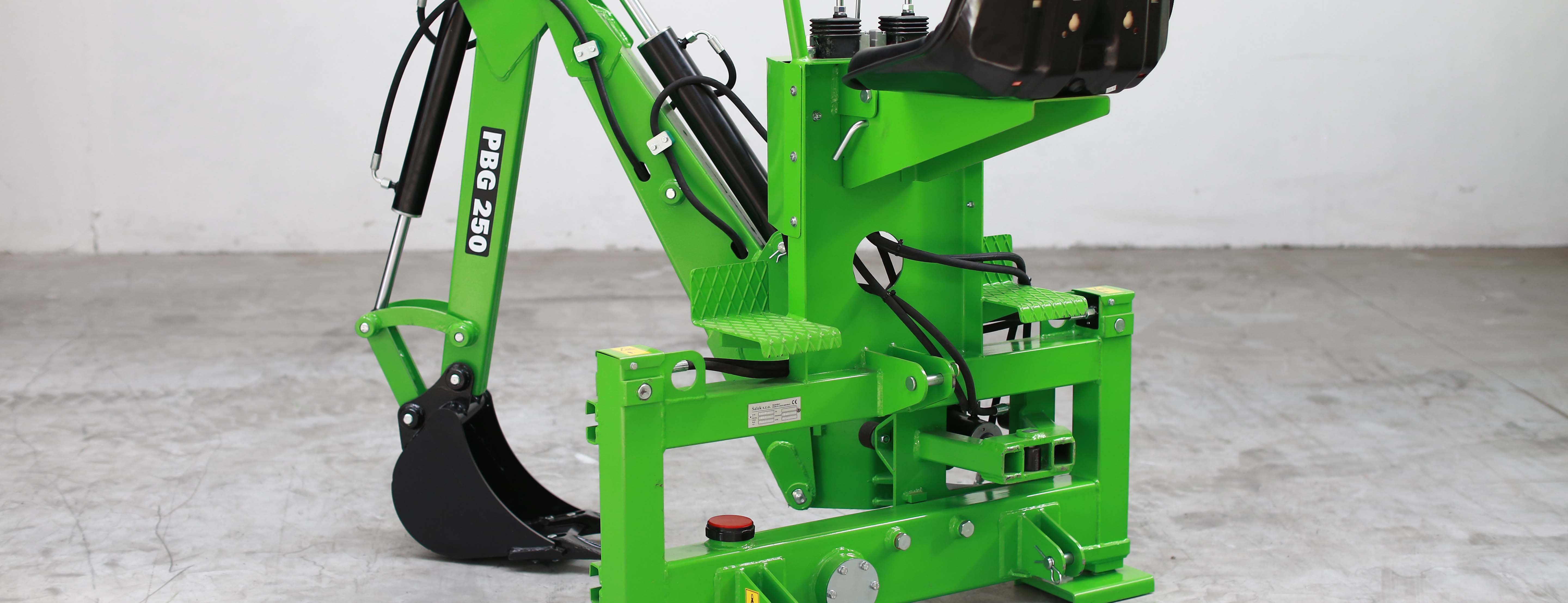

PBG-250 Rear Digger


This attached implement is designed for digging, simple earth works, loading and displacement of agricultural materials. While working it is supported by adjustable rugged legs. This digger is equipped with a separate hydraulic circuit and powered by a hydromotor which is linked directly to the tractor rear PTO shaft. Own control is based on a two-function hydraulic distributor. This implement provides reliable and easy operation and fast coupling to a small tractor. Optional accessories Manure fork – grab Jib extension “A” 800 mm.

Are you interested?

Send us a non-binding request and we will get back to you.

If you have additional questions, contact us or come to our showroom in Prostějov.

Shop Šálek s.r.o.
Vrahovická 2527/5
796 01 Prostějov

Download

Technické parametry

PBG-250
Maximum horizontal reach 2 500 mm
Maximum operating depth 1 300 mm
Maximum loading height 2 400 mm
Maximum angular displacement 180°
Maximum load on hitch 150 kg
Loading shovel width 270 mm
Loading shovel volume 0,03 m2
Hydraulic tank capacity 25 l
Hydraulic pump capacity 25 l/min
Oil operating pressure 16 MPa
Cena bez DPH 125,000 Kč
Cena S DPH 151,250 Kč

Rozměry

Rozměry

Doplňky

Typ Název Cena bez DPH Cena s DPH Foto
PBG-L800 Slope Spoon L=800mm 11,000 Kč 13,310 Kč
PBG-L400 Dredging Spoon L=400mm 9,500 Kč 11,495 Kč

Multimedia PBG-250 Rear Digger
