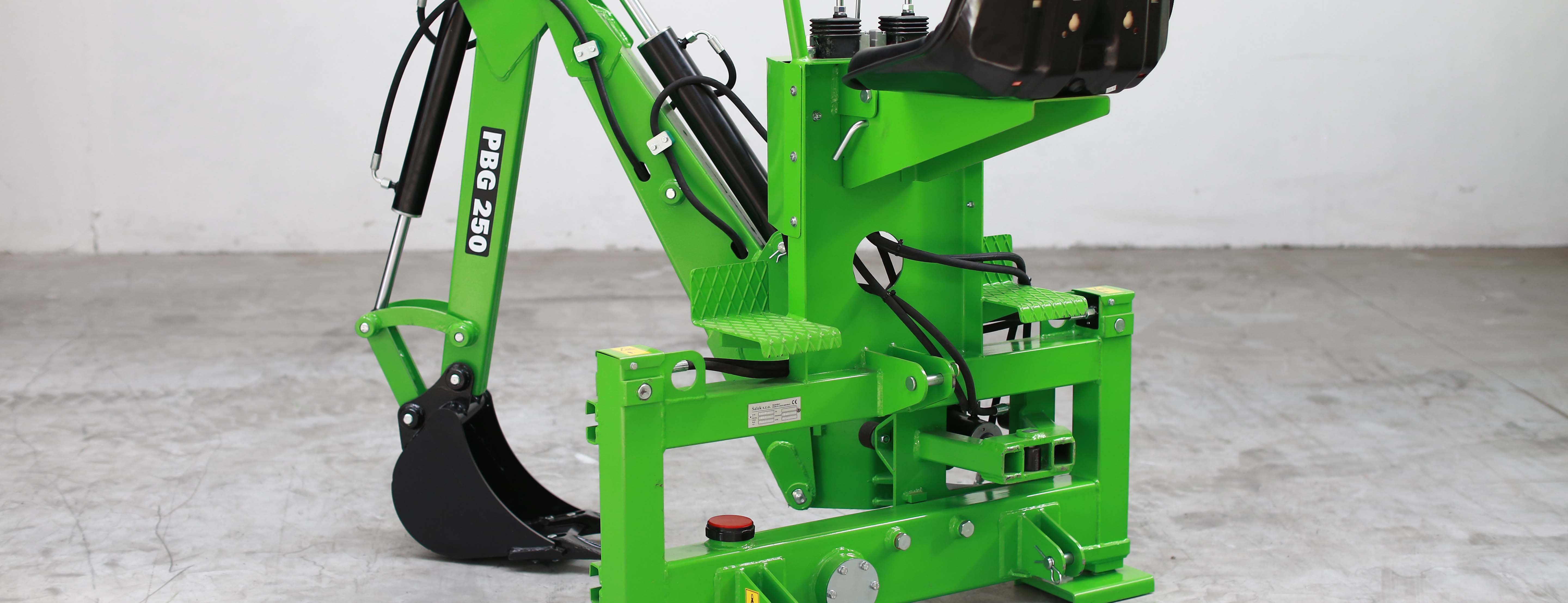

PBG-250 Rear Digger

This attached implement is designed for digging, simple earth works, loading and displacement of agricultural materials. While working it is supported by adjustable rugged legs. This digger is equipped with a separate hydraulic circuit and powered by a hydromotor which is linked directly to the tractor rear PTO shaft. Own control is based on a two-function hydraulic distributor. This implement provides reliable and easy operation and fast coupling to a small tractor. Optional accessories Manure fork – grab Jib extension “A” 800 mm.

Are you interested?

Send us a non-binding request and we will get back to you.

If you have additional questions, contact us or come to our showroom in Prostějov.

Shop Šálek s.r.o.
Vrahovická 2527/5
796 01 Prostějov

Contacts
salekpv@salekpv.cz
+420 582 330 407

Download

MANUAL

Technical details

	PBG-250

Price without VAT	7,103.57 EUR
Price with VAT	8,595.33 EUR
Maximum horizontal reach	2 500 mm
Maximum operating depth	1 300 mm
Maximum loading height	2 400 mm
Maximum angular displacement	180°
Maximum load on hitch	150 kg
Loading shovel width	270 mm
Loading shovel volume	0,03 m2
Hydraulic tank capacity	25 l
Hydraulic pump capacity	25 l/min
Oil operating pressure	16 MPa

DIMENSIONS

Accessories

Type	Name	Price without VAT	Price with VAT	Photo
PBG-L800	Slope Spoon L=800mm	504.12 EUR	609.99 EUR
PBG-L400	Dredging Spoon L=400mm	494.96 EUR	598.90 EUR
