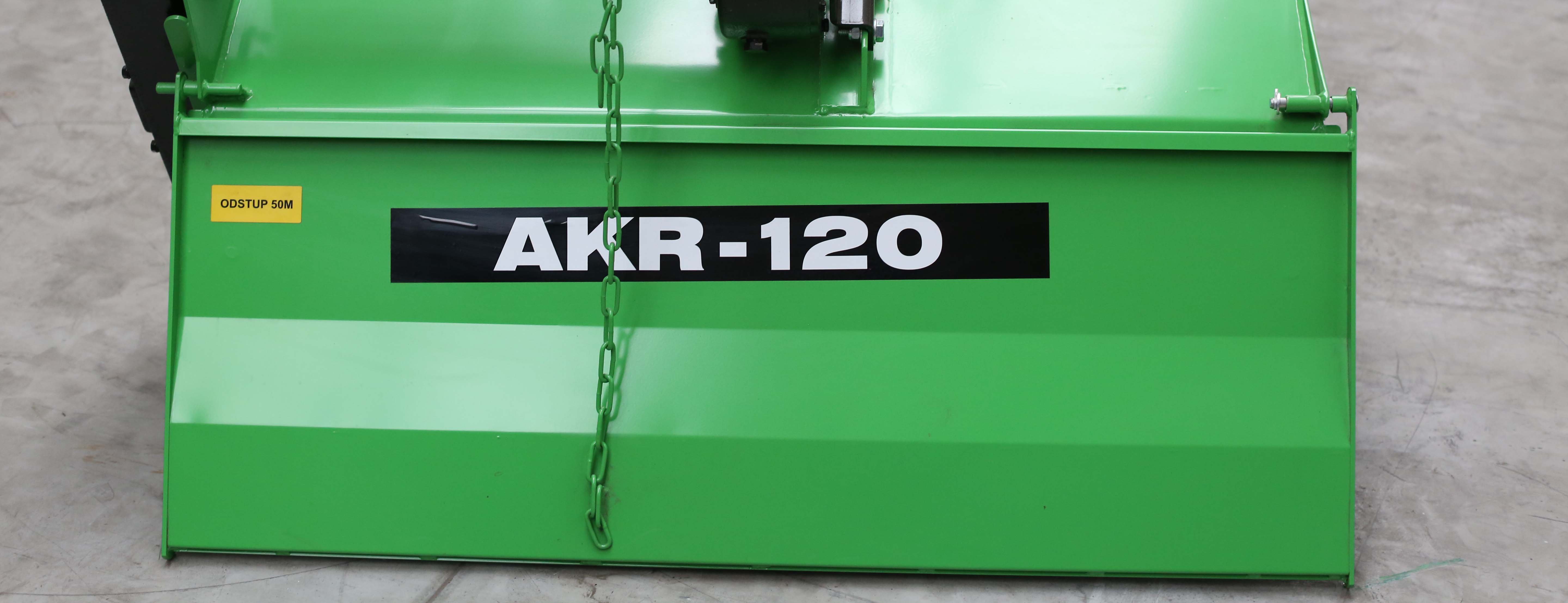

AKR-140 / 120 / 100 Rotary Tiller

This rotary tiller is used for mechanization of field works on smaller pieces of land and for municipal services with utilisation especially in vegetable farms, gardens, arboriculture and
fructiculture, for soil preparation, soil mixing with manures or composts, field weeding and hoeing of wide-row crops. The model AKR-100 with its operating width of 100 cm is designed for compact tractors with power output less than 14 HP, such as TZ-4K-14 and TK-10. This implement can be coupled with all types of compact tractors equipped with three-point hitches ISO 730/1N. In case of tractors TK-12, TZ-4K-14 and MT8-132.2 it is necessary to use the quick-coupler FDZ-187. The tiller is powered by the tractor rear PTO shaft. From here the power itself is transmitted by a joint shaft.

Are you interested?

Send us a non-binding request and we will get back to you.

If you have additional questions, contact us or come to our showroom in Prostějov.

Shop Šálek s.r.o.
Vrahovická 2527/5
796 01 Prostějov


Technical details

AKR-100 AKR-120 AKR-140
Length 870 mm 870 mm 870 mm
Width 1 140 mm 1 355 mm 1 500 mm
Operating width 1 000 mm 1 150 mm 1 360 mm
Operating depth 150 mm 150 mm 150 mm
Height 690 mm 770 mm 770 mm
Slope inclination
PTO shaft speed 540 nebo 1000 ot/min-1 540 nebo 1 000 ot/min-1 540 nebo 1 000 ot/min-1
Weight 120 kg 164 kg 184 kg
Price without VAT 2,062.33 EUR 2,703.94 EUR 3,116.41 EUR
Price with VAT 2,495.42 EUR 3,271.77 EUR 3,770.85 EUR


Type Name Price without VAT Price with VAT Photo
BKH-316 PTO Shaft 316 178.74 EUR 216.27 EUR

Multimedia AKR-140 / 120 / 100 Rotary Tiller
