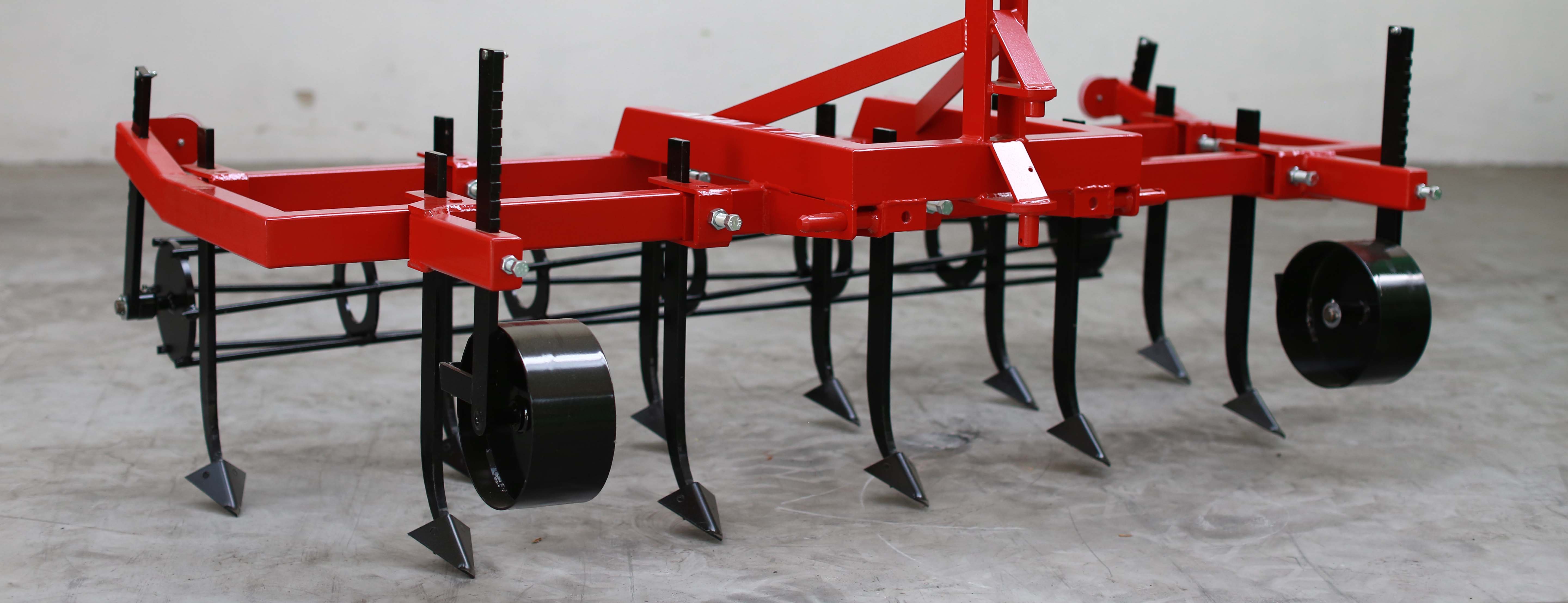

AKM-172 / 130 Combinator


This combinator AKM is designed for soil preparation after fall-plough before drilling, for cultivation, clods crushing and land levelling by means of a rod-iron roll, furrowing for manual potatoes and vegetable planting etc., for back filling, intertillage during vegetation periods and lifting at the harvest. This implement can be coupled with all types of compact tractors equipped with three-point hitches ISO 730/1N. In case of compact tractors TK-12, TZ-4K-14 and MT8-132.2 it is necessary to couple it by means of the quick-coupler FDZ-187.

Are you interested?

Send us a non-binding request and we will get back to you.

If you have additional questions, contact us or come to our showroom in Prostějov.

Shop Šálek s.r.o.
Vrahovická 2527/5
796 01 Prostějov

Download

Technical details

AKM-130 AKM-172
Price without VAT 1,828.60 EUR 2,062.33 EUR
Price with VAT 2,212.60 EUR 2,495.42 EUR
Width 1 400 mm 1 860 mm
Length 950 mm 950 mm
Height 810 mm 810 mm
Weight 125 kg 150 kg
Operating width for aeration 1 130 mm 1 620 mm
Aeration depth do 150 mm do 150 mm
Line spacing options 550 mm 550 mm
Operating speed do 5 km/h-1 do 5 km/h-1
Slope inclination for aeration do 8° do 8°
Slope inclination for grooving do 4° do 4°

DIMENSIONS

DIMENSIONS

Multimedia AKM-172 / 130 Combinator
