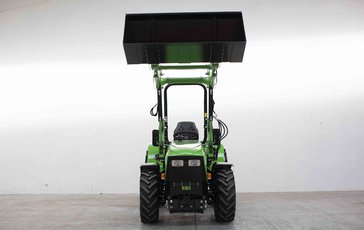

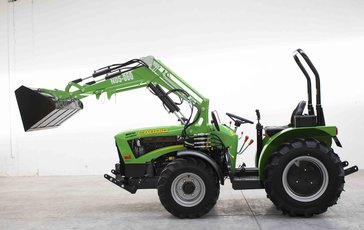

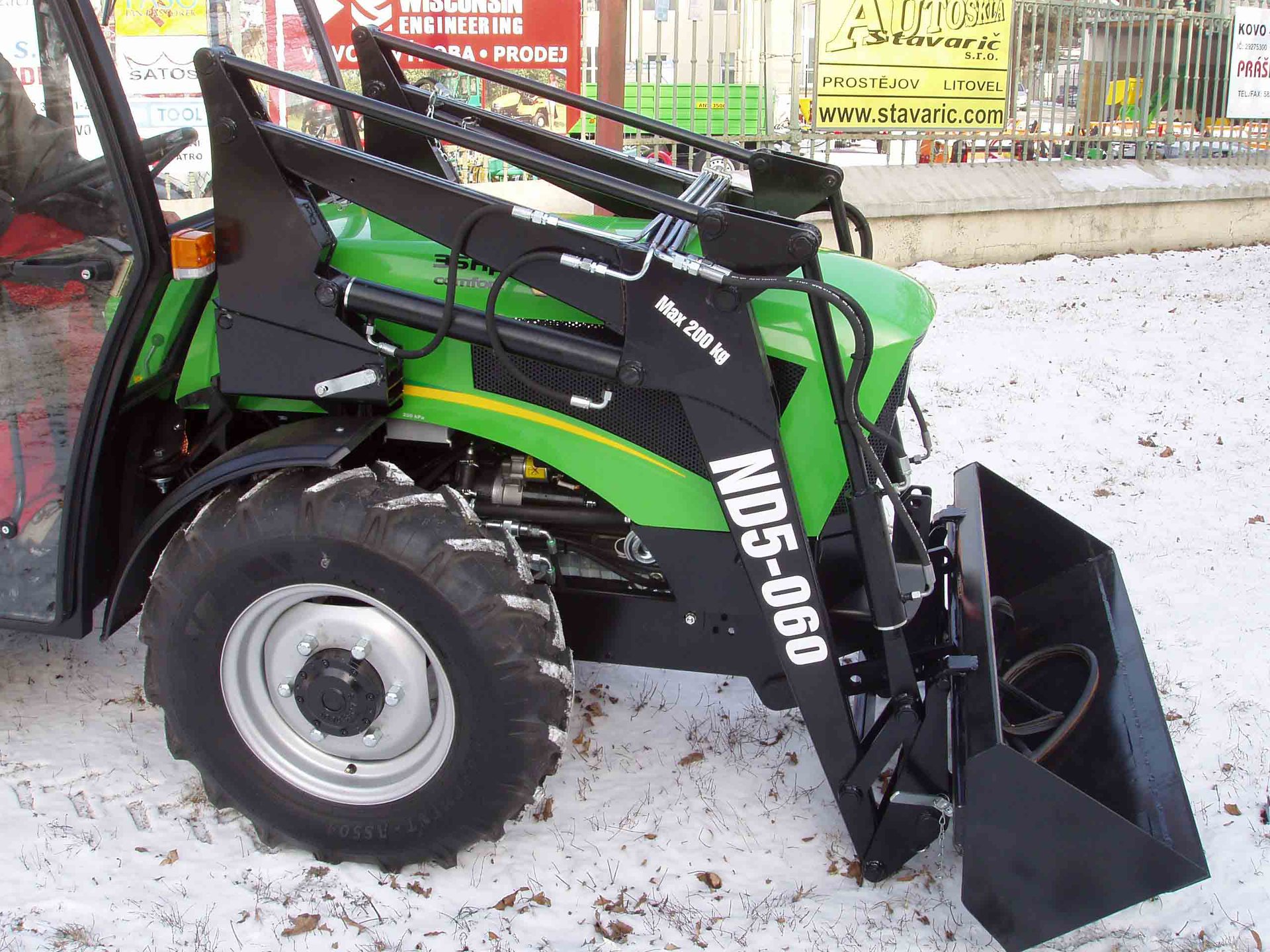

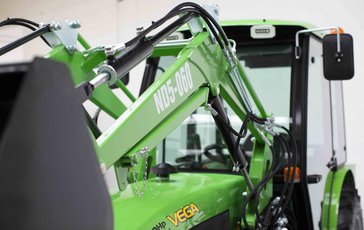

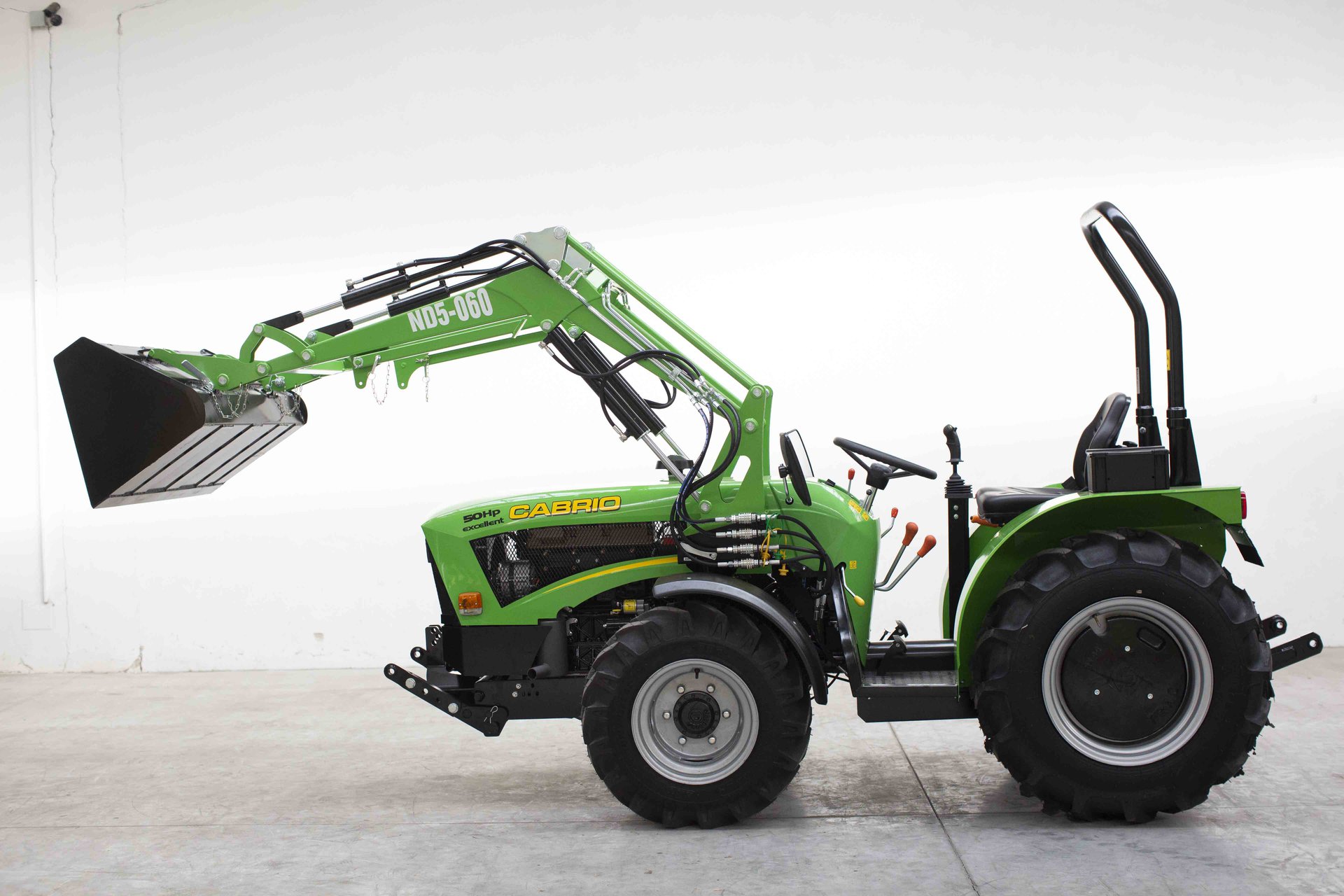

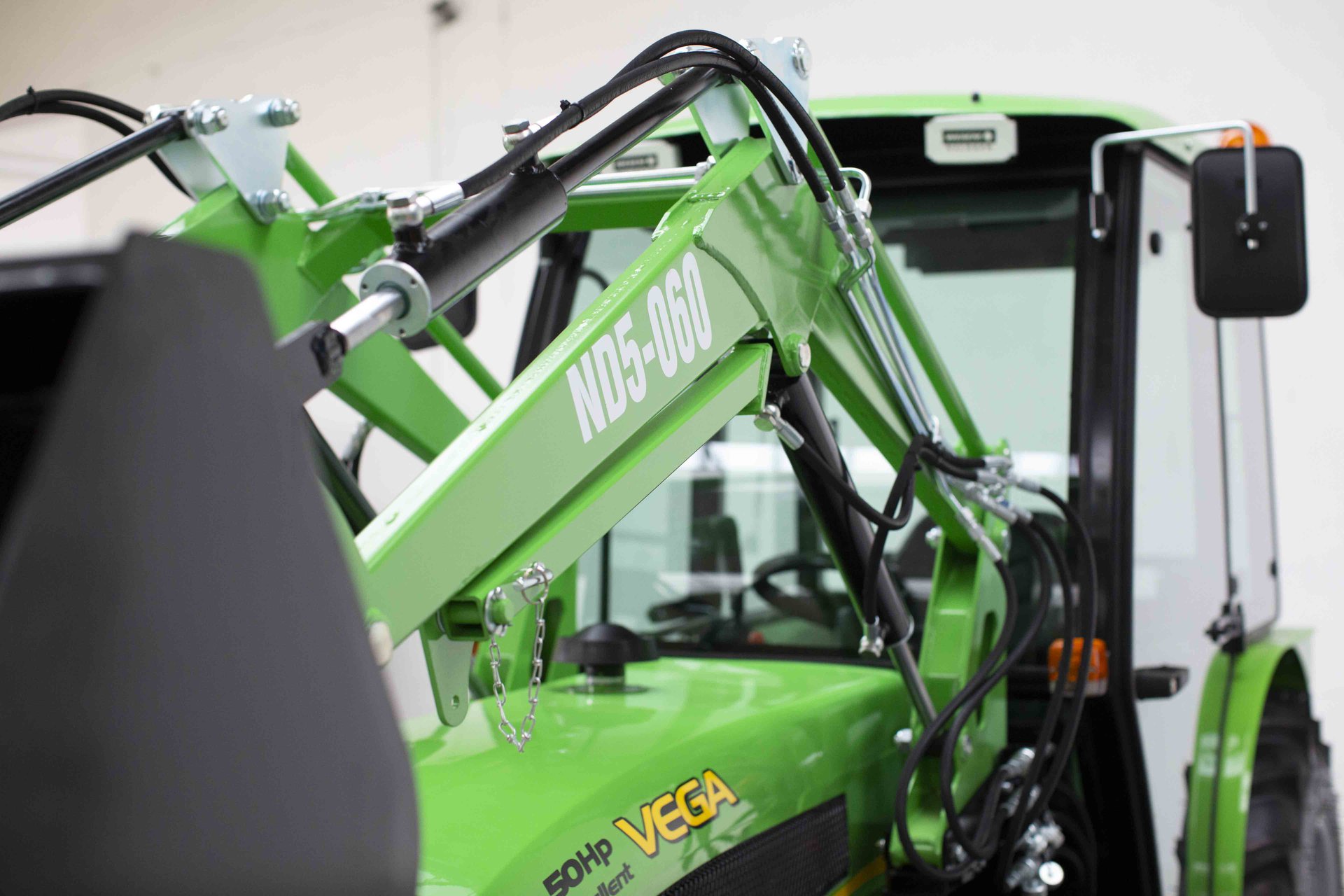

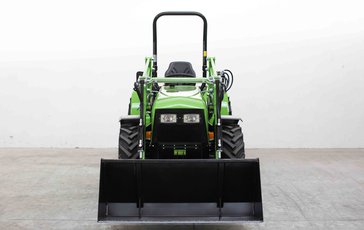

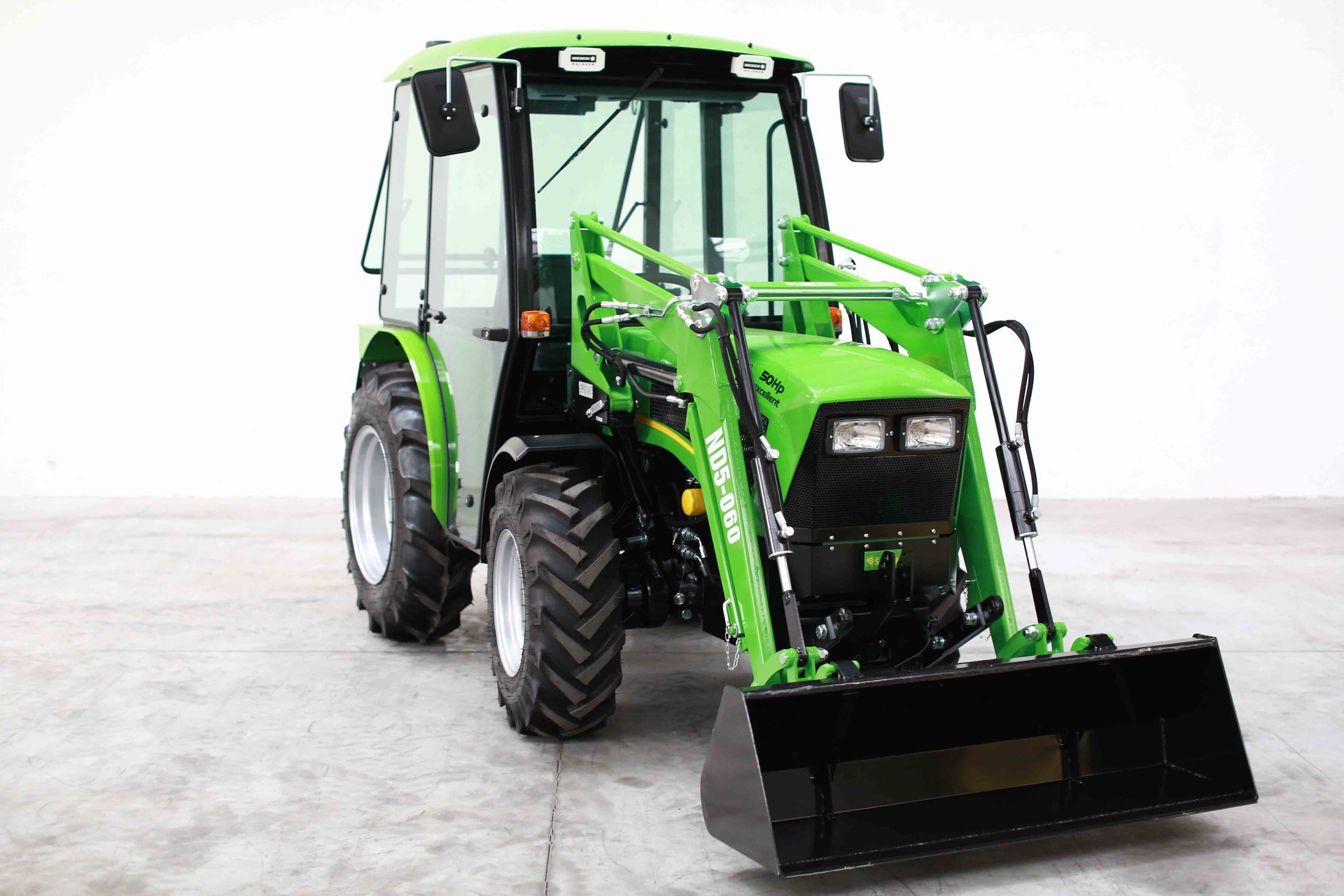

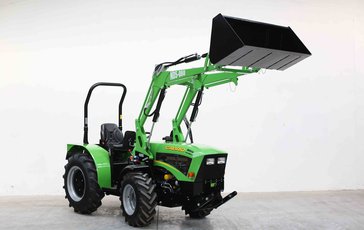

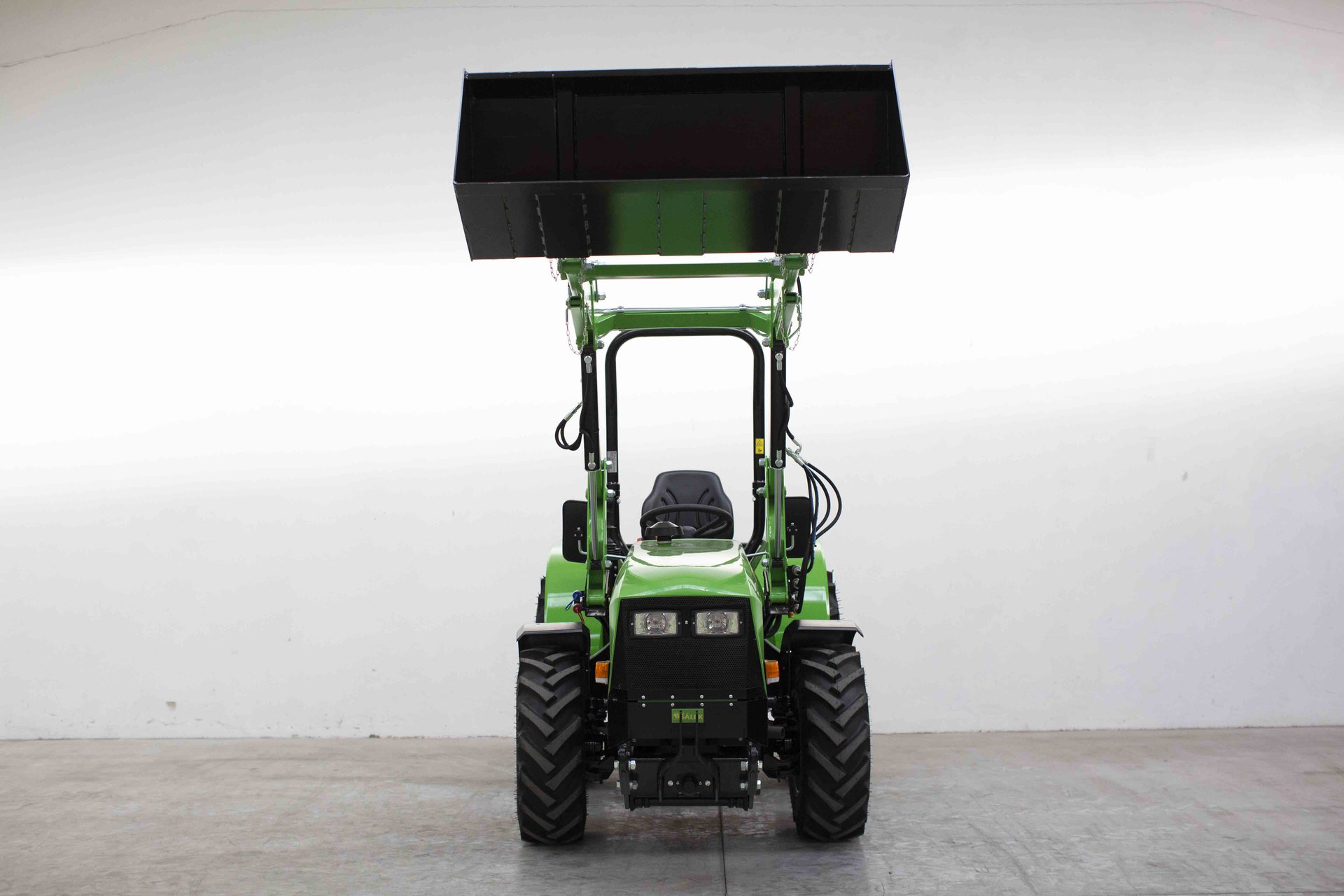

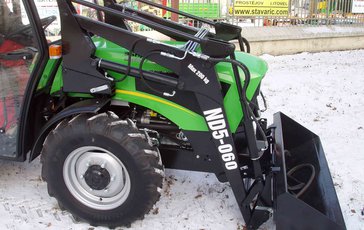

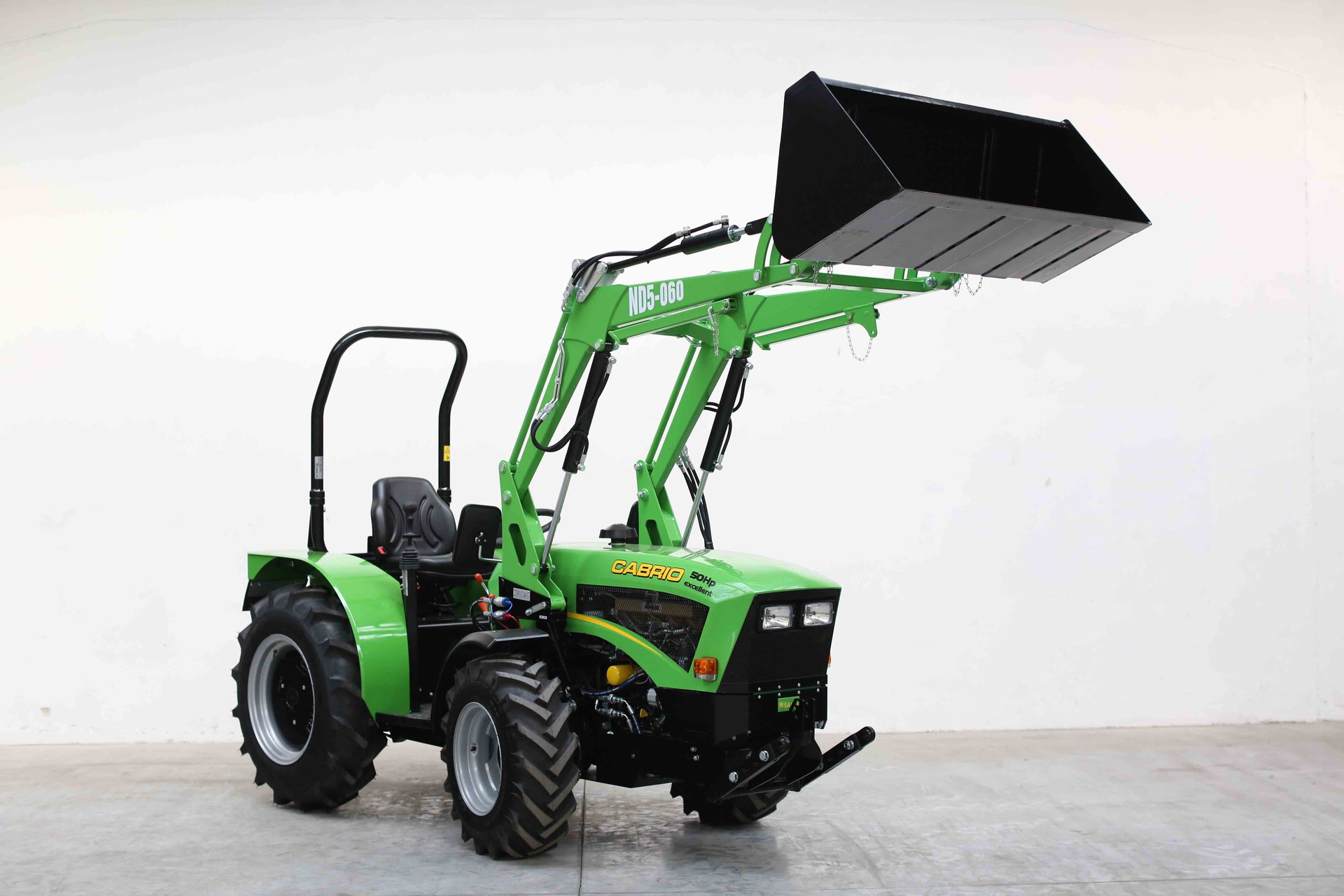

ND5-060 Front Loader


The front loader ND5-060 is designed for coupling with compact tractors VEGA, MT8-232 and MT8-050 incl. their modifications. After installation of relevant working tools and implements the loader is used for loading of soil, bulk materials, air-dried goods, manures and for similar material handling.

Working tools of this front loader:

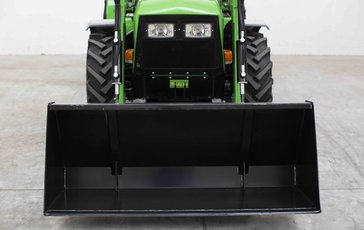

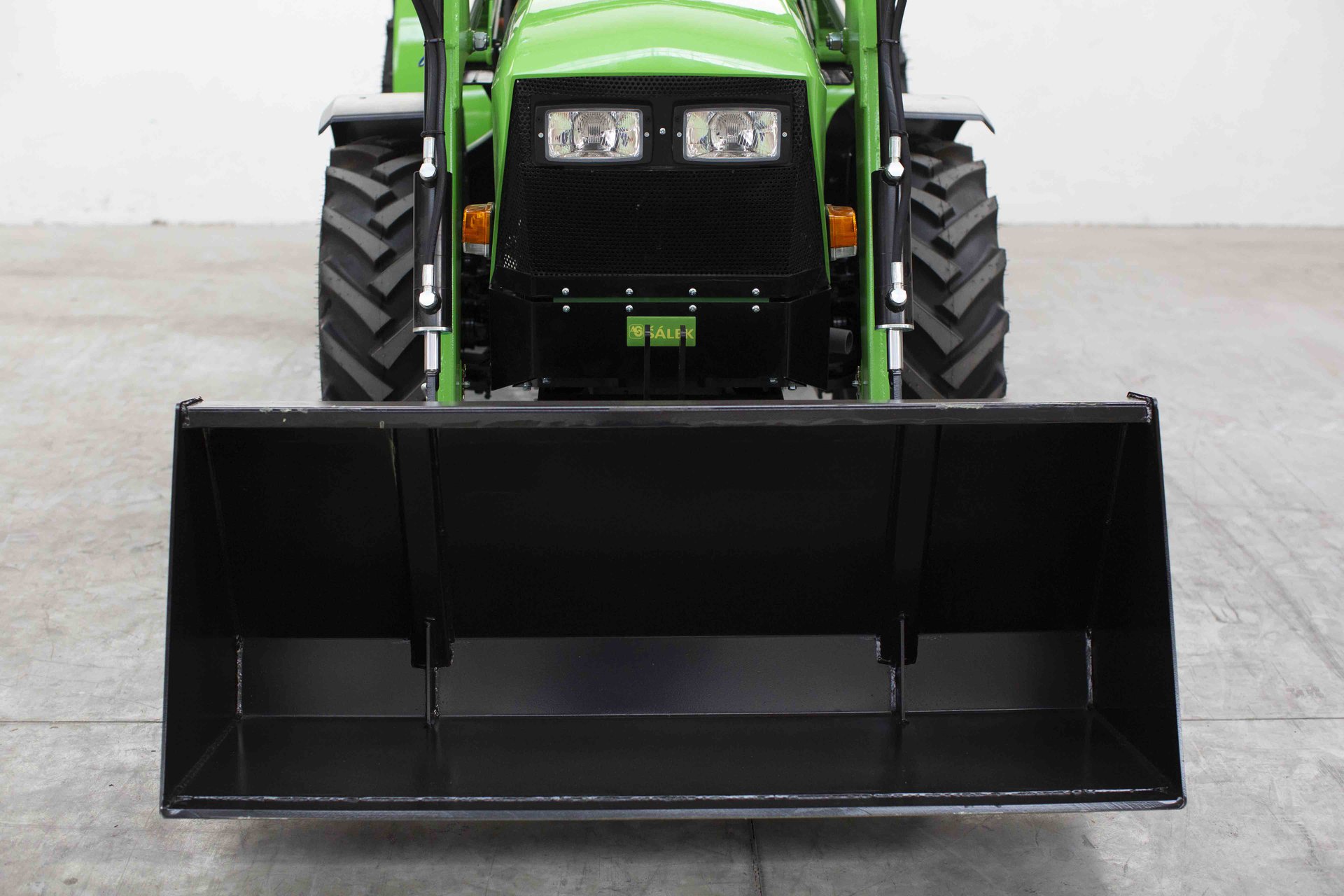

– basic loader shovel for bulk materials, capacity 0.1 m3, weight 56 kg
– manure fork, capacity 0.2 m3, weight 62 kg

The loader is controlled by means of the tractor hydraulics through its two external hydraulic circuits and quick-couplers. The loader is designed especially for material handling, loading and disposal works in agricultural objects with live-stock production, in storehouses, at gardening, municipal services, in building industry and wherever there is insufficient space for bigger tractor machinery.

Leading features:
– easy coupling with small tractors

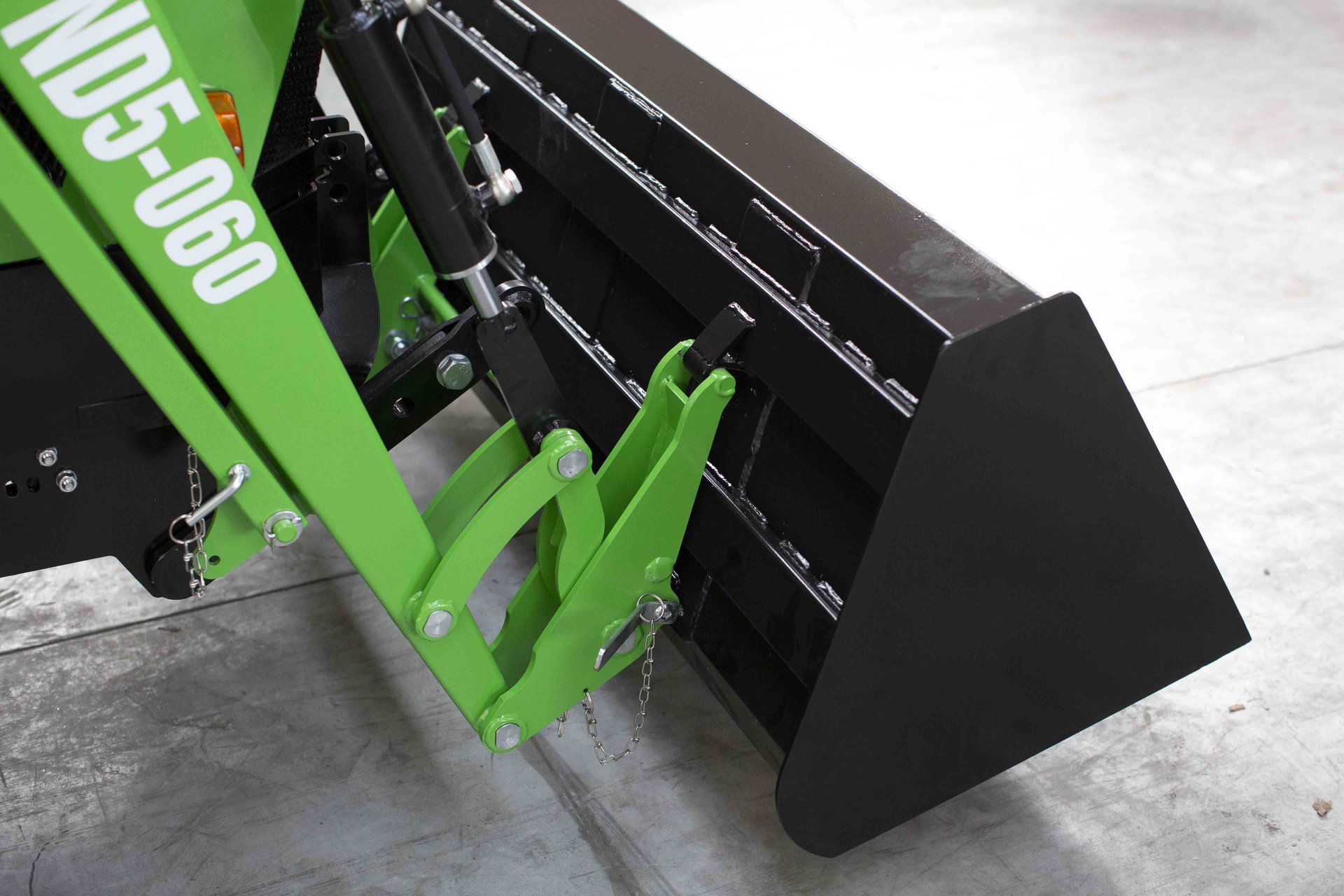

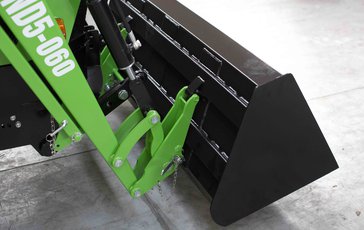

– easy attachment or change of working tools
– comfortable operation
– good mobility in smaller spaces

While working, it is always necessary to use additional ballast weights.

Are you interested?

Send us a non-binding request and we will get back to you.

If you have additional questions, contact us or come to our showroom in Prostějov.

Shop Šálek s.r.o.
Vrahovická 2527/5
796 01 Prostějov

Download

Technical details

ND5-060
Maximum loading height 2 060 mm
Maximum dumping height 1 820 mm
Operating depth 120 mm
Hook carrying capacity 250 kg
Max. travel speed with load 6 km/h
Max. slope inclination
Overall width with tractor 1 320 mm
Operating pressure of hydraulics 8,5 MPa
Weight of front loader 140 kg
Weight 200 kg
Price without VAT 85,000 Kč
Price with VAT 102,850 Kč

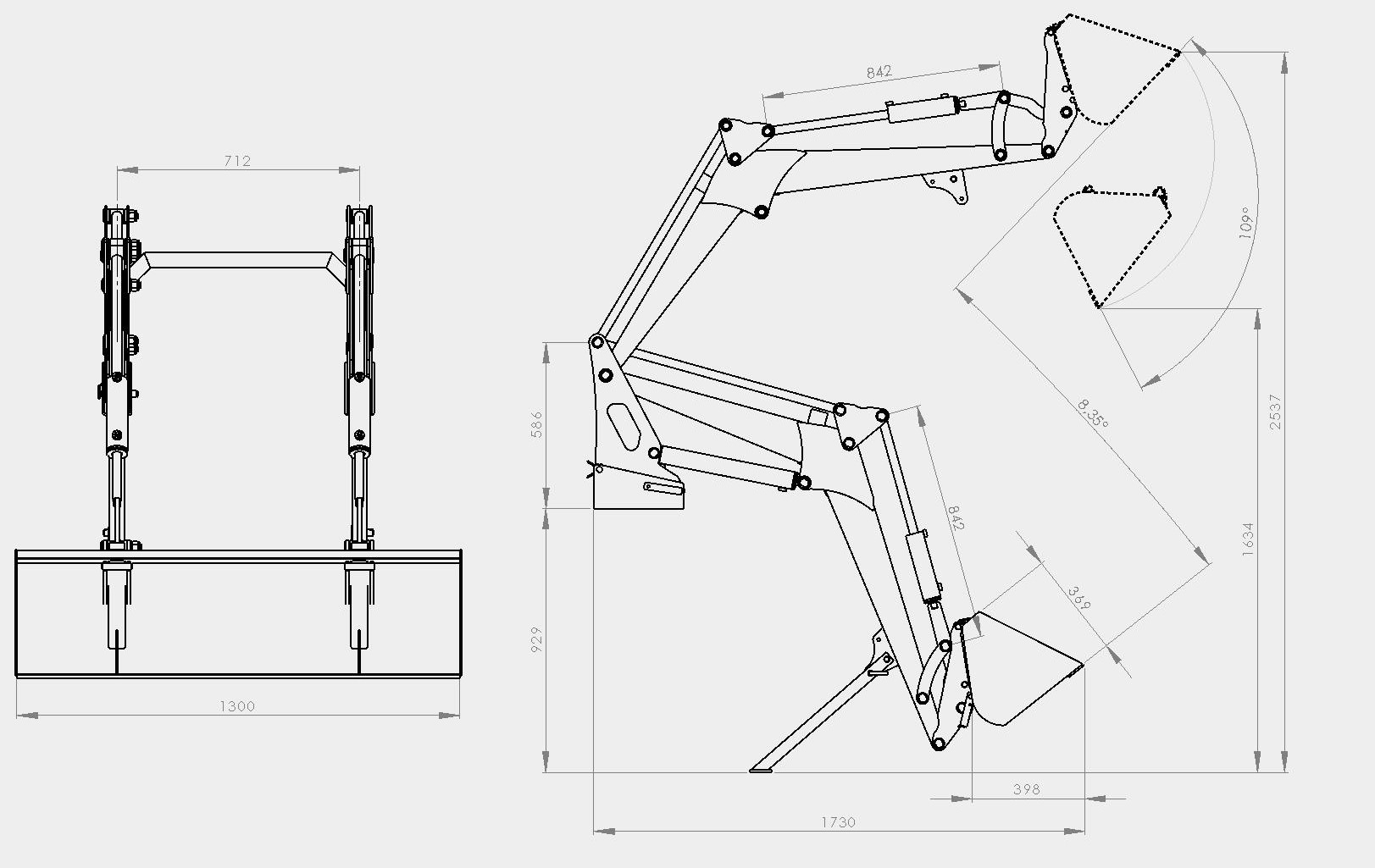

DIMENSIONS

DIMENSIONS
