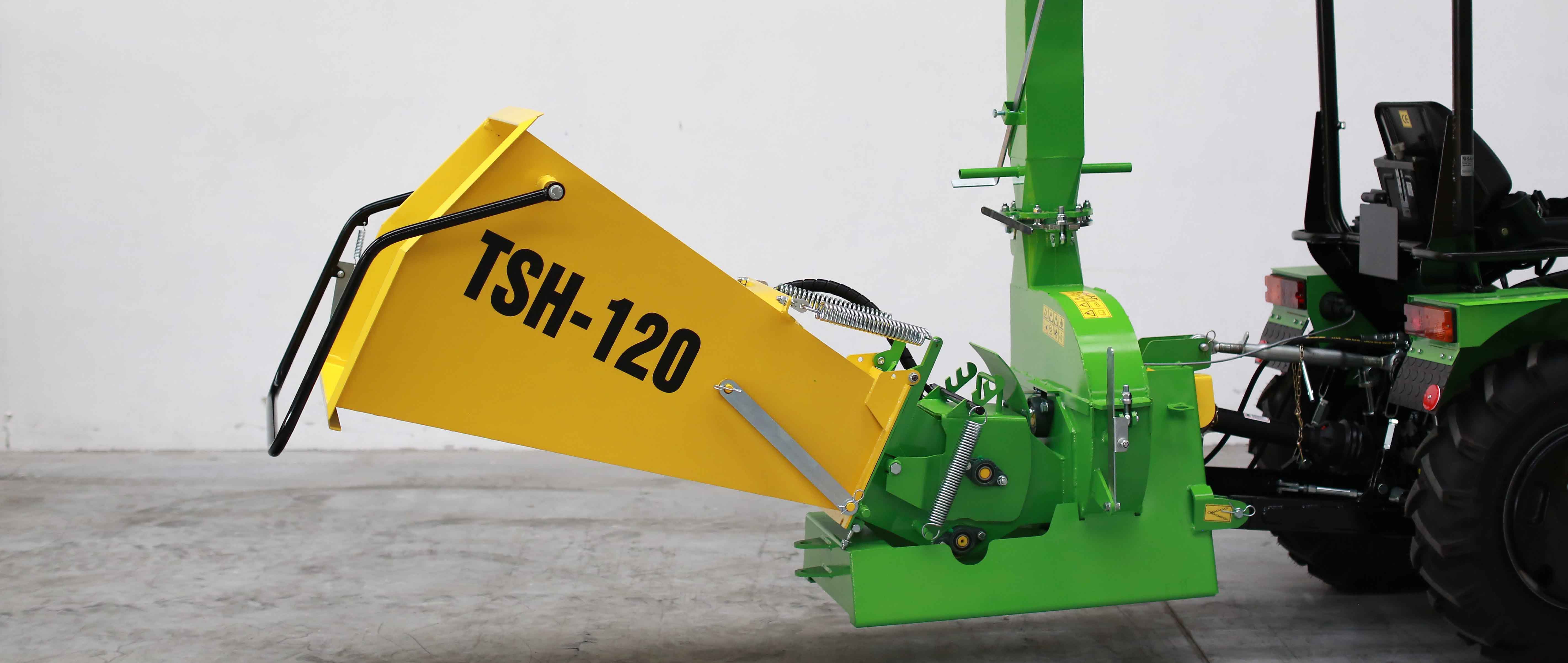

TSH-120 Wood Chipper with Hydraulic Feed


The tractor chipper for garden and forest waste is designed for the disposal of materials of plant origin, plant residues and woody parts (up to a maximum diameter of 120 mm) ). The result of the process are wooden chips which you can use for heating, mulch for backfilling or for treatment of plant residues before composting. The chipper can be applied behind a compact tractor using a three-point hitch of category 1 and 1N. The chipper is equipped with a mechanically rotating chimney, which ensures the exhaust of wood chips directly on the body. The TSH-120 wood chipper is equipped with a hydraulically driven feed roller, which ensures automatic feed of the material towards the cutting disc. The hydraulic feed cylinder is equipped with a return flow with a Nostress system. The chipper takes torque from the PTO shaft of the tractor using an articulated shaft.

Are you interested?

Send us a non-binding request and we will get back to you.

If you have additional questions, contact us or come to our showroom in Prostějov.

Shop Šálek s.r.o.
Vrahovická 2527/5
796 01 Prostějov

Download

Technical details

TSH-120
Price without VAT 7,103.57 EUR
Price with VAT 8,595.33 EUR
Wheel diameter 570 mm
Number of knives 4
Knife size 170x100x14
Rotor speed 800 ot/min
Weight 280 kg
Chip capacity 5-15 mm
Output 5-10 m3/hod
Max. diameter of loaded materials 120 mm
Output of tractor 25-50 HP
PTO shaft speed 1000 ot/min
Three-point hitch 1 a 1N
Adjustable column out take 180°- 7 poloh
Inserted profile (width x height) 622 x 622mm

DIMENSIONS

DIMENSIONS

Accessories

Type Name Price without VAT Price with VAT Photo
BKH-316/a PTO Shaft witch Overruning Clutch 316/a 293.31 EUR 354.90 EUR
