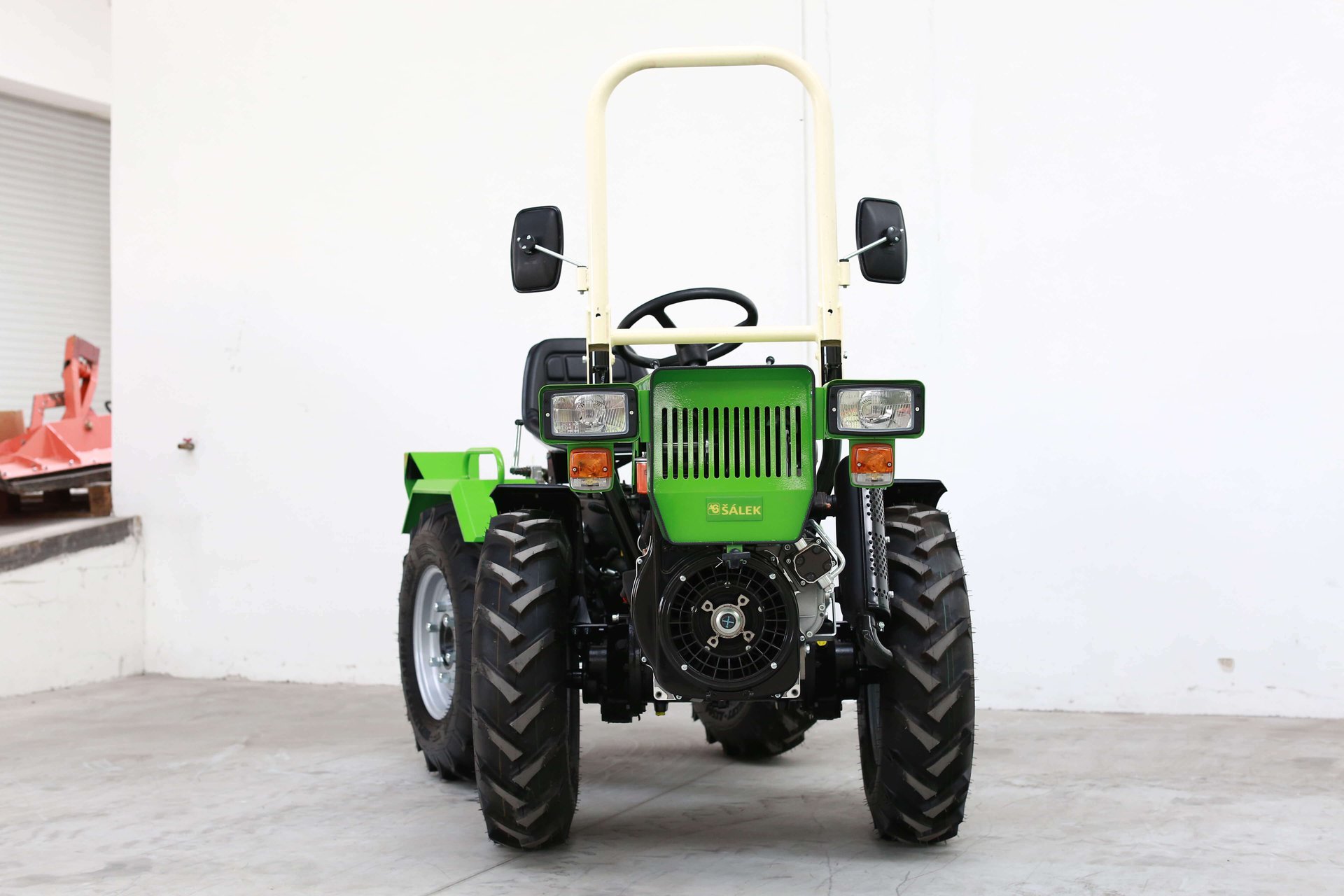

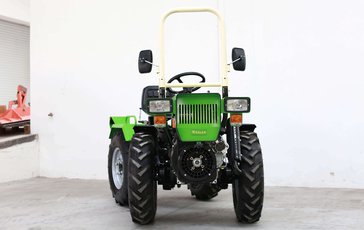

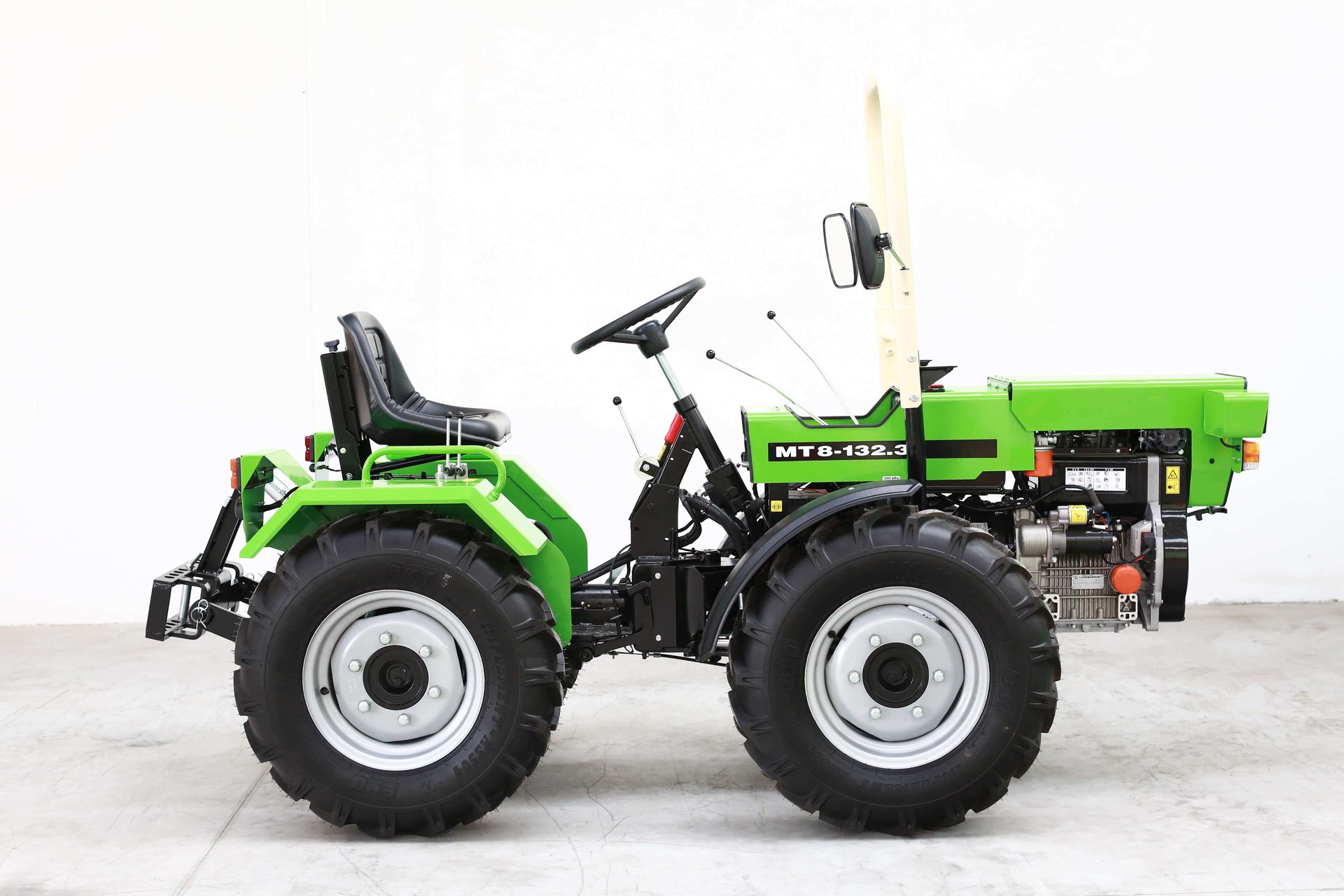

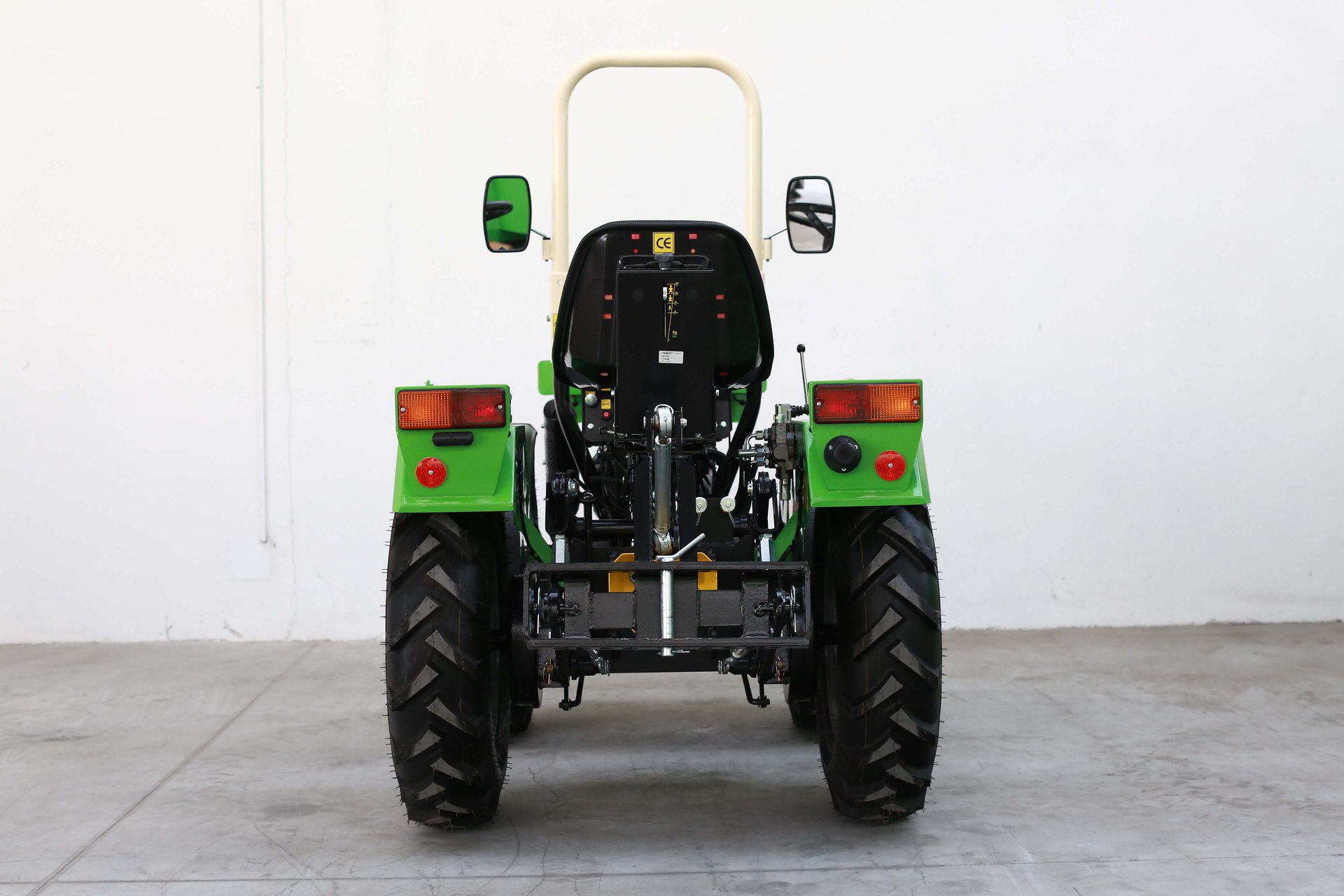

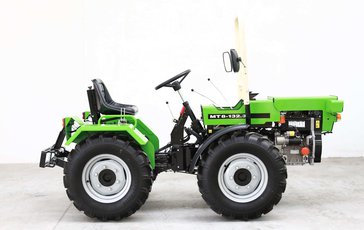

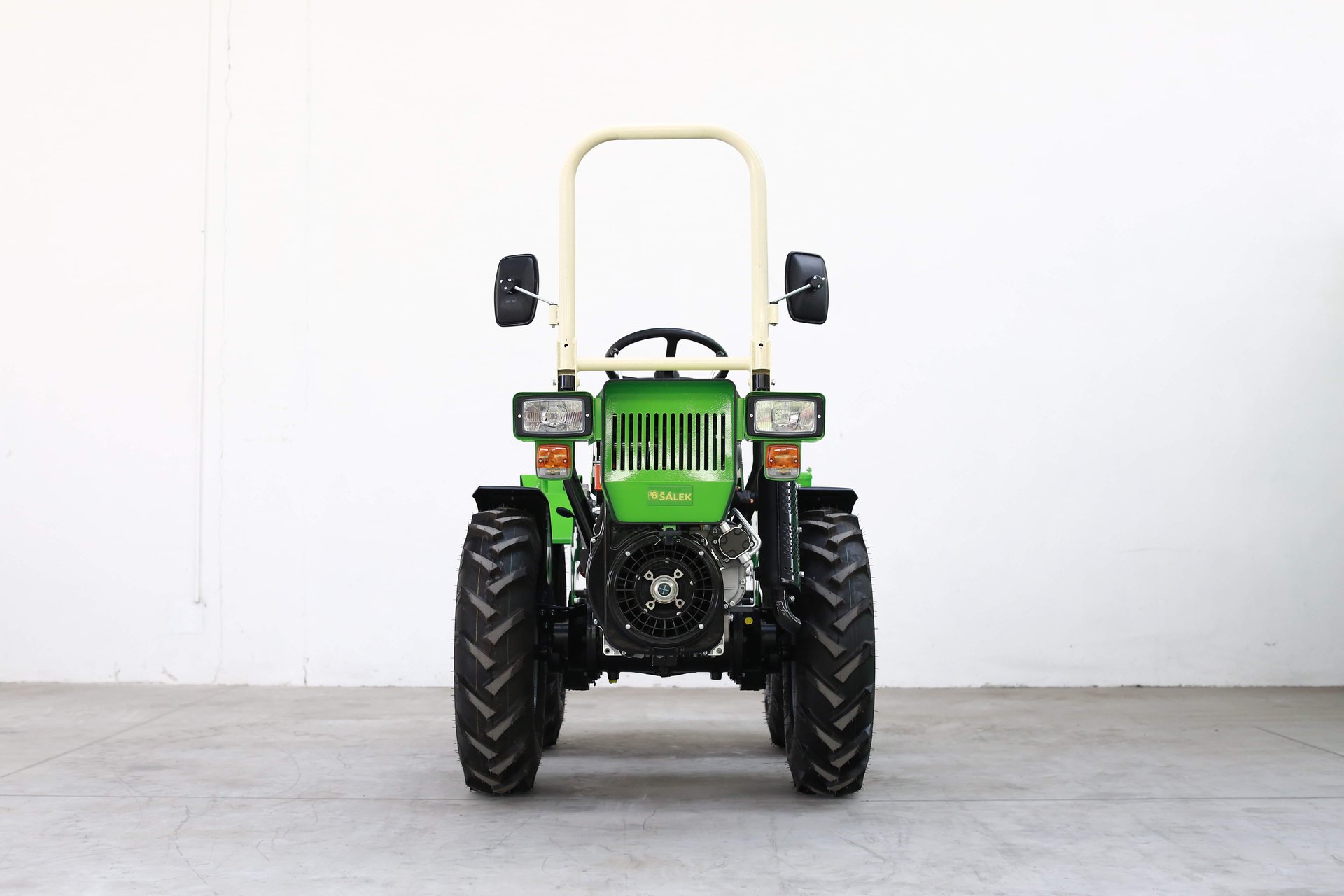

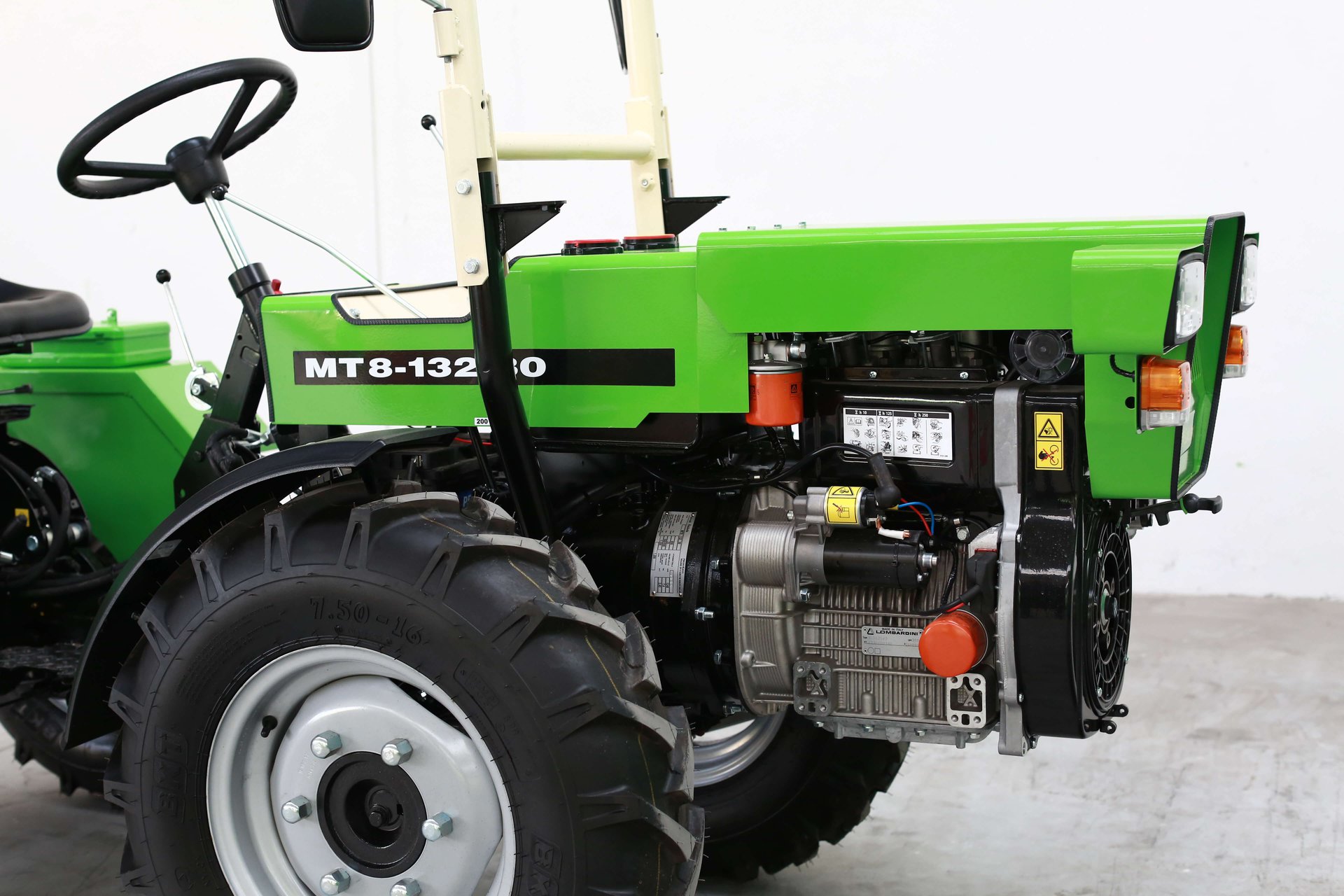

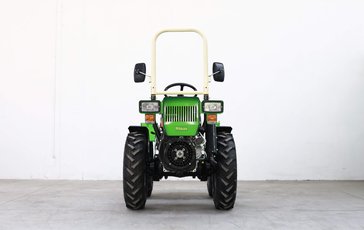

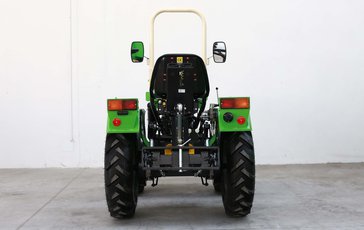

MT8-132 COMPACT TRACTORS Articulated

An ideal choice for customers looking for a reliable compact tractor for everyday work in agriculture, municipal services, or light forestry tasks. This iconic Czech machine impresses not only with its performance and easy maintenance, but also with its distinctive appearance that many have come to appreciate. Thanks to its compact size and easy handling, it’s perfectly suited for use in fields, orchards, and around the farm.

Are you interested?

Send us a non-binding request and we will get back to you.

If you have additional questions, contact us or come to our showroom in Prostějov.

Shop Šálek s.r.o.
Vrahovická 2527/5
796 01 Prostějov

Contacts
salekpv@salekpv.cz
+420 582 330 407

Download

MANUAL

Technical details

	MT8-132.26	MT8-132 30HP - Klasik
Emission standards Tractors with emission standard stage V Tractors with emission standard stage IIIA
Varianty malotraktorů emisní normy Stage IIIA- dostupná pouze mimo EU (v EU stage III již není dostupná k prodeji)
Price without VAT	-	-
Price with VAT	-	-
Engine	-	Kohler 9LD-625.2
Power output kW/HP	17,7/23,7	22/30
Max. engine speed rpm	3000	2800
Piston displacement cm3	1028	1248
Torque Nm@rpm	63/2300	67/2000
Cooling	vodou	air
Number of cylinders	3	2
Gearbox	mechanická	mechanical
Number of gears	4 vpřed / 4 vzad	4 forwards / 4 backwards
Clutch	jednostupňová suchá	single
Travel speed range km/h	0,8-25	0,8 - 25
Front tires – standard	6,00x16	6,00x16
Rear tires – standard	6,00x16	6,00x16

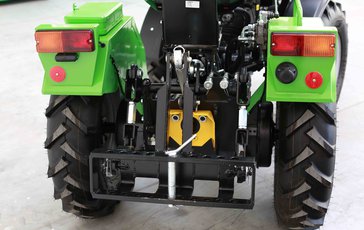

Front three-point hitch	ISO 730 / 1N	ISO 730 / 1N
PTO shaft speed – rear	540-1000 ot/min	540 - 1000 ot/min

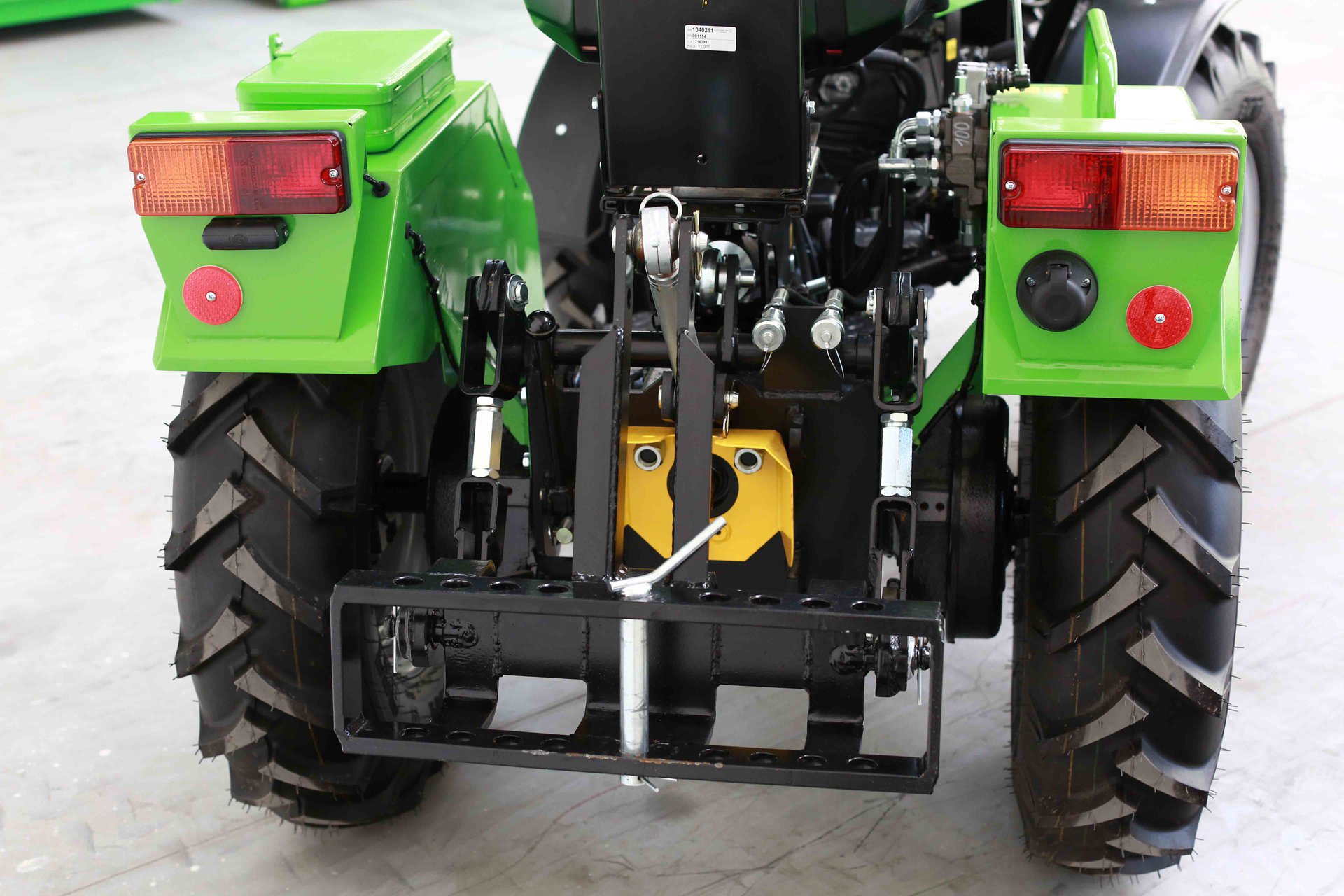

Lifting force – rear hitch	6200 N	6200 N
Mechanical brakes	2x bubnové	2 x drums
Front differential	Přední uzávěrka diferenciálu	front differential lock
Rear differential	zadní uzávěrka diferenciálu	rear differential lock
Steering	hydraulické (mechanické)	hydraulic (mechanical)
Hydraulic pump capacity	17l/min	17 l/min
Operating pressure of hydraulics	8 Mpa	8 Mpa
Hydraulic distributor	jednosekční, (dvousekční až čtyřsečkní)	one-section, (two-section to four-section *)
External hydraulic circuit	1 x vzadu, další okruhy na přání	1 x at the back, other circuits on request
Specific fuel consumption	235 g/kWh = 10%	235 g/kWh ±10%
Fuel tank capacity	11l	11 l
Turning radius	2 m	2 m
Weight	870 kg	870 kg
Width	1170	1170
Fuel type	diesel	Diesel
Motor	KDW1003	-
BY REQUEST	*	*

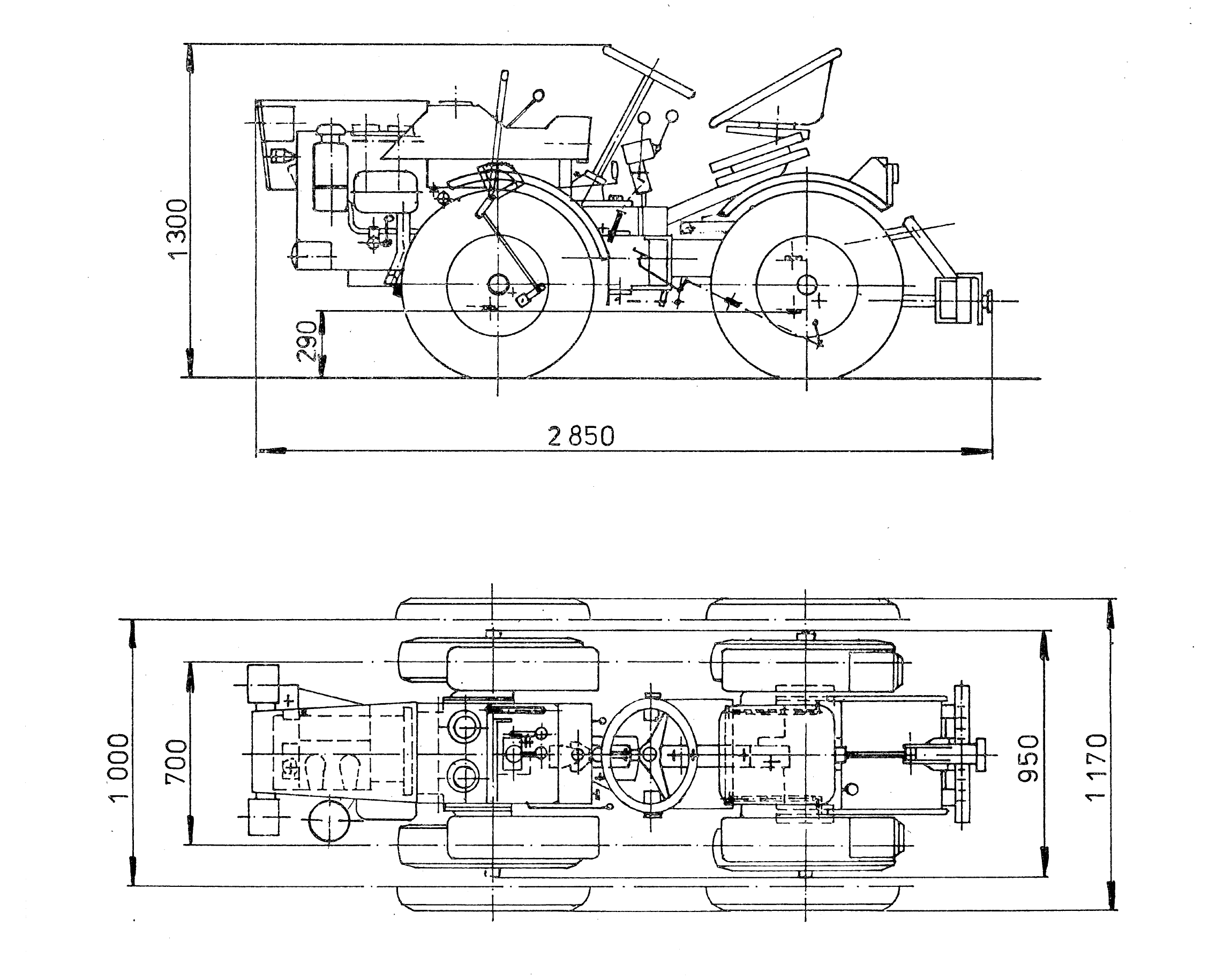

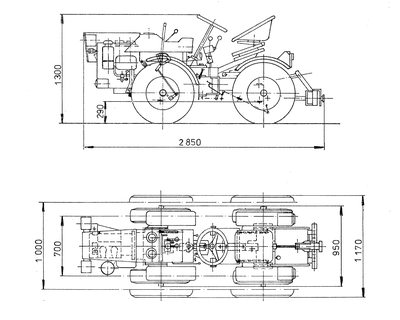

DIMENSIONS

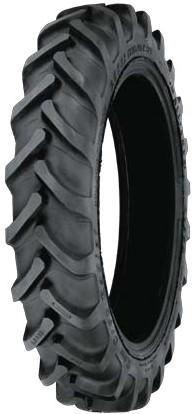

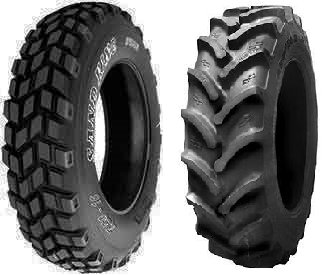

Optional tires

10x75x15,3

6,00x16

31,5x15,5x5

7,50×16

10×75×15,3

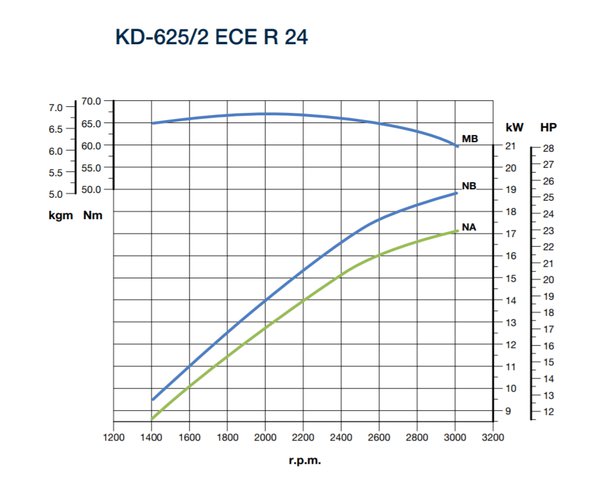

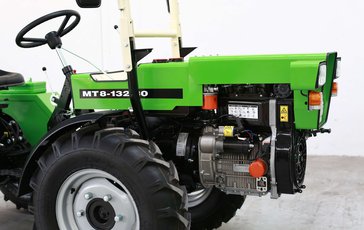

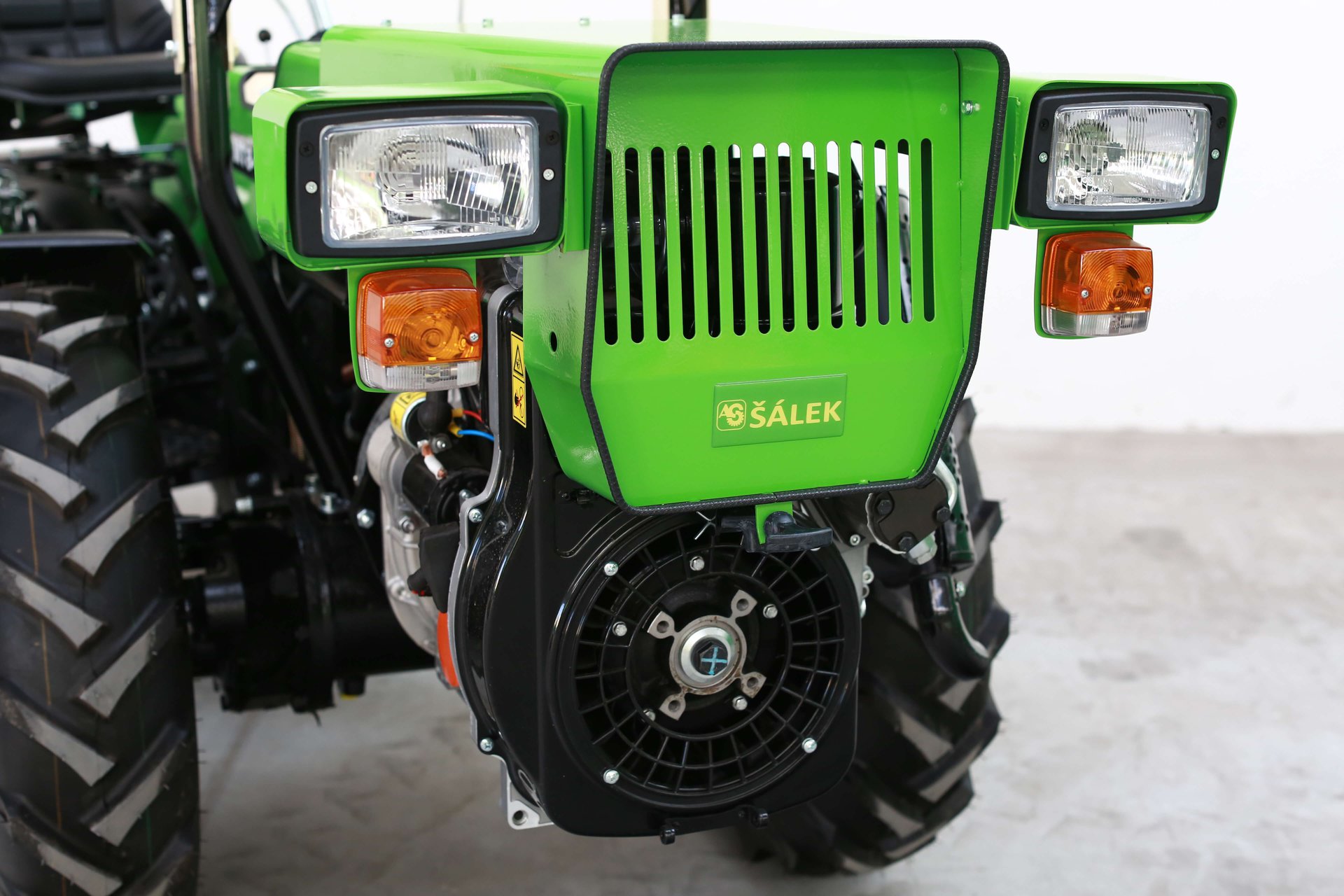

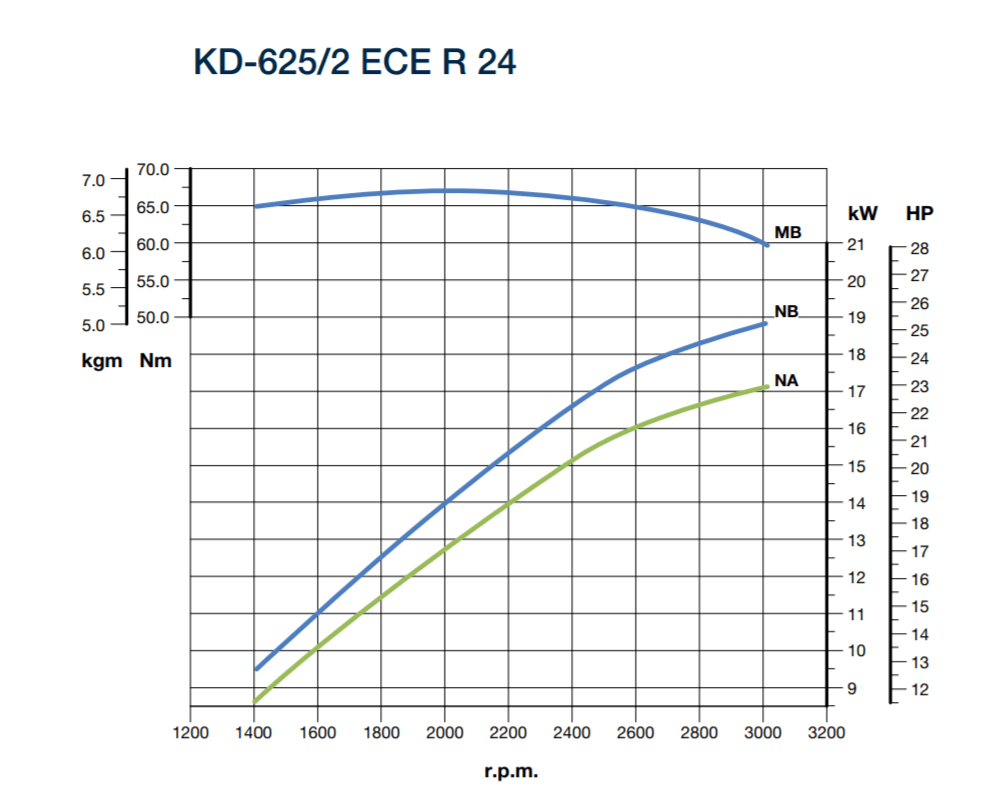

Engines

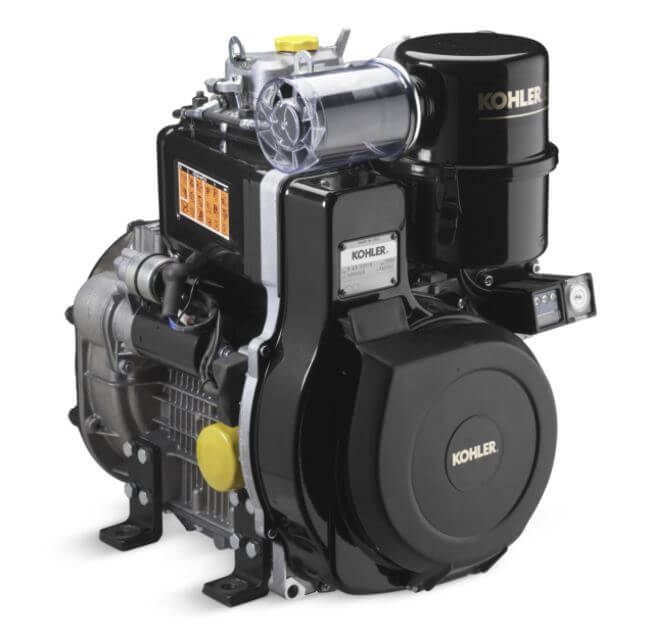

9LD626.2

The Kohler 9LD626.2 diesel engine is a four-stroke in-line two-cylinder air-cooled with direct fuel injection. The engine has an OHV valve train. The design of the engine is based on many years of experience of the Italian manufacturer. Kohler engine is characterized by low weight for its performance, ease of use, high economy of operation and aesthetic appearance. Its overall design allows a wide range of engine applications. It can be used mainly in tractor and stationary design. It is suitable for compact tractors type TZ-4K-14, TZ-4K-10 (12), MT8-132.2 and MT8-050 (150). It can also be used in diesel-electric units.

Accessories

Type	Name	Price without VAT	Price with VAT
08109/2	Double-Circiut Hydraulic Distributor + 1x Rear Circle	-	-
ZUD-01	Rear Differential Lock	-	-
BMZ-142	Basic Wheel Weight 20Kg	-	-
BMZ-142/a	Extra Wheel Weight 25Kg	-	-
BOM-159	Protective Front Arch	-	-
BOM-160	Protective Rear Arch	-	-

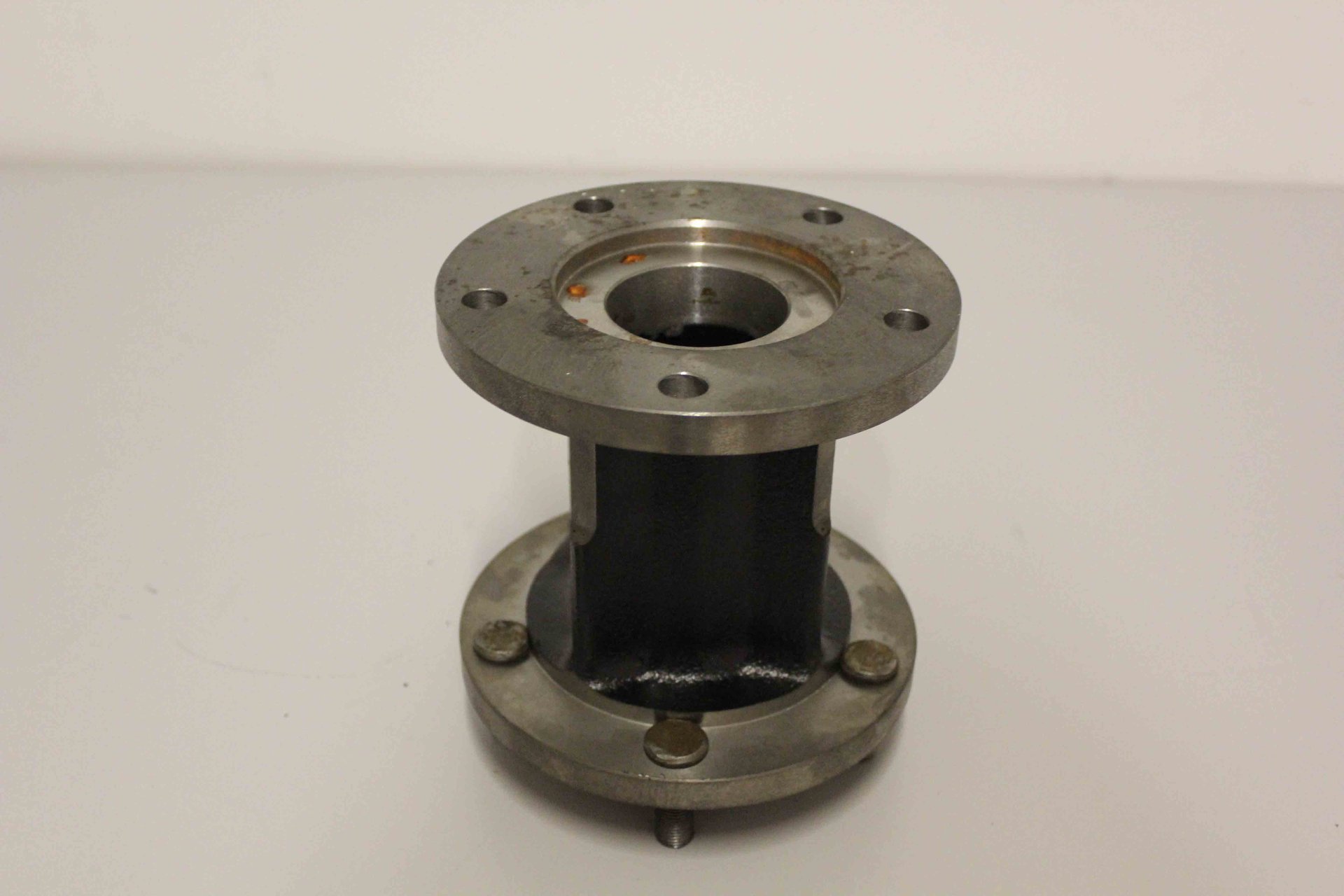

52780	Lower Hitch Adapter	-	-
07758-c	Wheel Attachments 300 mm	-	-
DRZ-203	Rear Triangular Quick Coupler 1 (680 mm)	-	-
DNP-141	Tires 7.50x16 (set)	-	-
DNP-161	Lawn Wheels (set) 30,5x15,5x5	-	-
DNP-151	Communal Wheels - Arrow pattern (set) 10.0x75x15,3	-	-
BKH-318/a	universal joint shaft	-	-
BKH-318	universal joint shaft	-	-
BKH-316/b	Universal joint shaft with front clutch	-	-
BKH-316/a	universal shaft with freewheel	-	-
BKH-316	universal shaft	-	-
HTB-430	Hydraulic Third Point 430mm	-	-
HTB-220	Hydraulic Third Point 220mm	-	-
07657/b	Towball ISO 50 (to the rear frame hinge)	-	-
