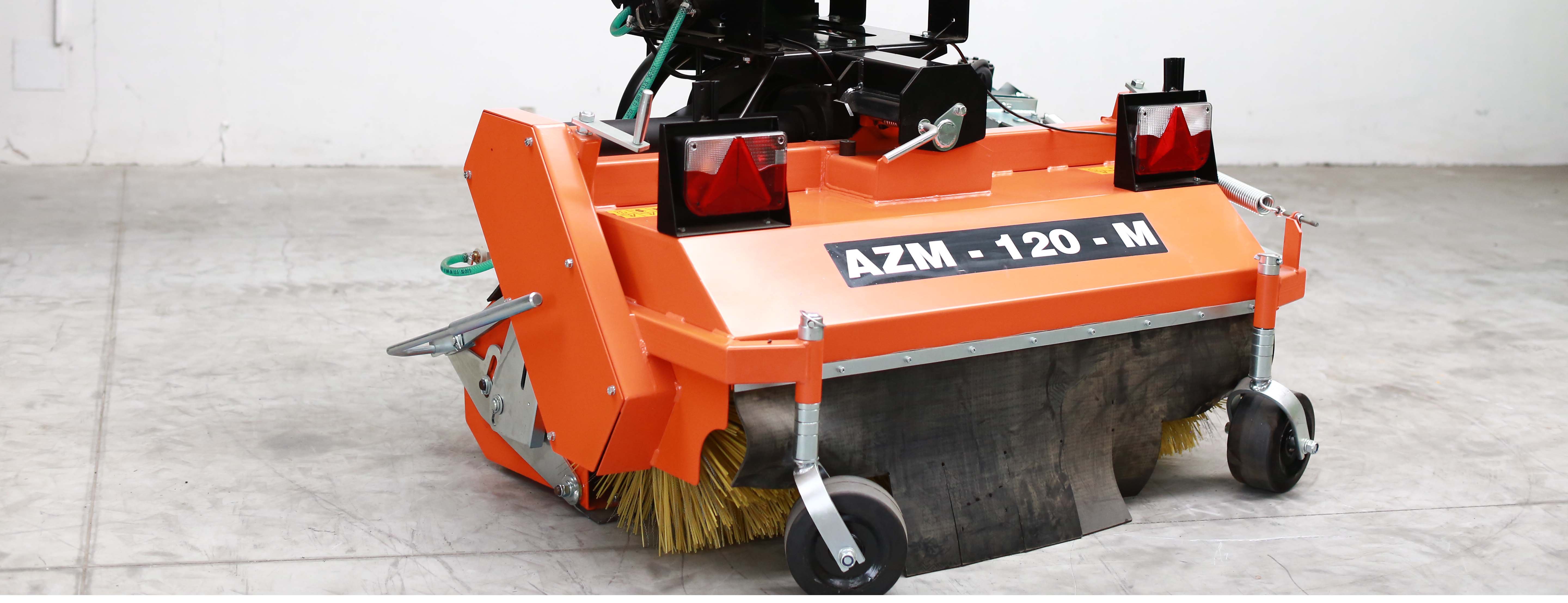

AZM-150M / 120M Road Sweeper with Collection Container


The road sweeper with collection container is used for sweeping of common sites, pavements, roads, playgrounds etc. It can be used to sweep dust and dirt, or to dust snow during winter maintenance. The sweeper AMZ-120M and AZM-150M is driven mechanically by an angular gearbox by means of an articulated shaft from the PTO shaft of a compact tractor. The sweeper is equipped with a collecting container for collecting dust and dirt. The tilting of the container is mechanically controlled as standard, on request it can be controlled hydraulically directly from the driver's seat by means of a linear hydraulic motor. Height-adjustable rubberized support wheels located on the sides of the sweeper are used to press the brush against the pad. The machine is designed for rear application to a compact tractor and can be easily aggregated using the rear three-point hitch category ISO730 / 1 and 1N.

Road sweeper can be supplemented with:
-Pressure sprinkling 200 liters. The pressure is provided by a 12V electric pump.
 The 200-liter polyethylene container has its own frame, so the sprinkler can be applied separately with a small tractor to a three-point hitch. During the rear application of the         sweeping brush with sprinkling, the 200 l container is placed directly on the brush, so it forms a compact unit.
-Side sweeping disc BK-300 driven by a hydraulic drive, which is connected via a control valve, which determines the speed of the disc. To apply the side sweeping disc WK300, it   is necessary to connect the machine pump to the hydraulic circuit of the compact tractor using 2 quick couplings. For the correct function of the device, it is necessary to have a   pump with flow rates of 20 l / min and a pressure of 8 MPa on the compact tractor. The machine can be easily aggregated using the rear three-point hitch for compact tractors with   a hitch of category ISO730 / 1 a.

Are you interested?

Send us a non-binding request and we will get back to you.

If you have additional questions, contact us or come to our showroom in Prostějov.

Shop Šálek s.r.o.
Vrahovická 2527/5
796 01 Prostějov

Download

Technical details

AZM-150M AZM-120M
Price without VAT 3,620.53 EUR 3,299.73 EUR
Price with VAT 4,380.84 EUR 3,992.67 EUR
Operating width 1500 mm 1 200 mm
Height 720 mm 720 mm
Width with BK-300 2283 mm 1983 mm
Width without BK-300 1857 mm 1557 mm
Length with BK-300 1461 mm 1461 mm
Length without BK-300 1170 mm 1170 mm
Operating speed 4-5 km/h 4-5 km/h
Collecting tank capacity 135 L 108 L
Weight with tub 256 Kg 236 Kg

DIMENSIONS

DIMENSIONS

Accessories

Type Name Price without VAT Price with VAT Photo
BKH-316 PTO Shaft 316 187.90 EUR 227.36 EUR
AZM-BK300 Side Sweeping Disc with Hydraulic Drive 1,186.98 EUR 1,436.25 EUR
AZM-TK 200L Pressure Sprinkling 12V/200 Liters 1,507.79 EUR 1,824.43 EUR

Multimedia AZM-150M / 120M Road Sweeper with Collection Container
