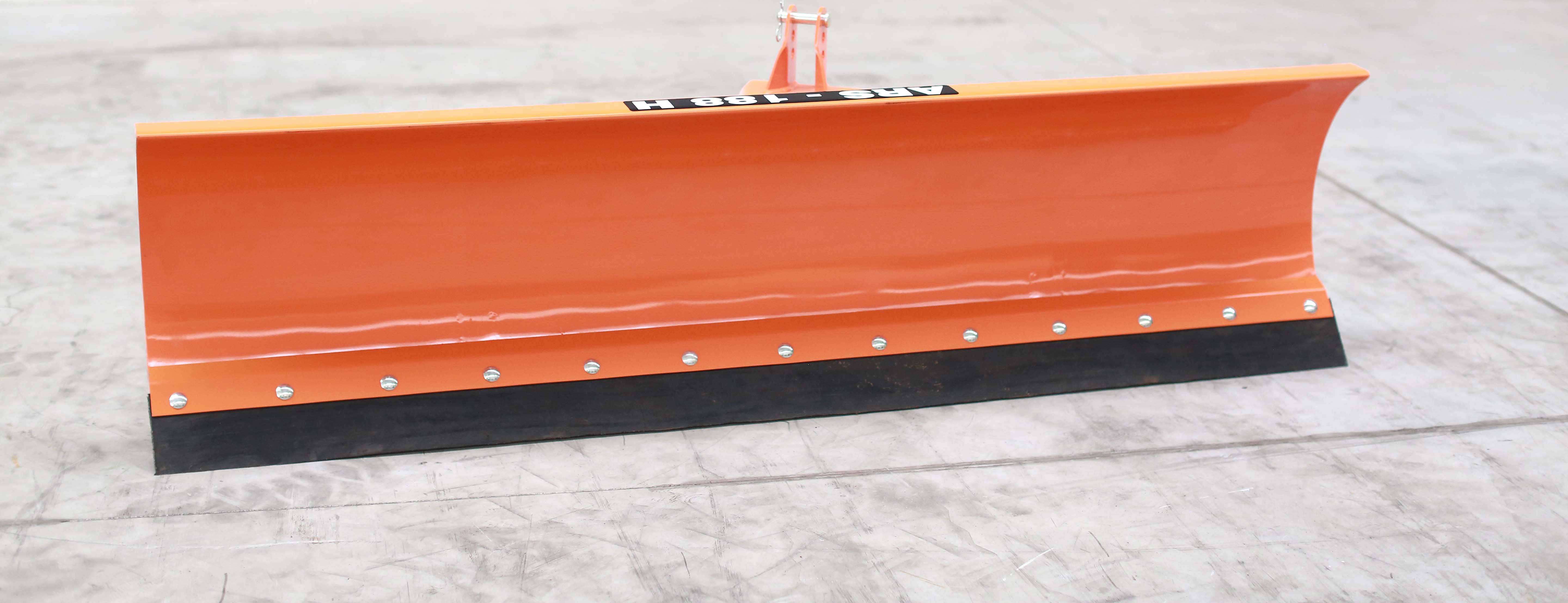

ARS-250H / 205H / 188H / 165H / 140H / 120H Front Ploughshare with Hydraulic Control

This implement is designed for removal of snow or loose materials from handling places, roads etc. It is possible to carry out its mechanical angular displacement in the horizontal plane by means of hydraulics. This plough share can be controlled directly by the tractor driver. This implement is protected against collision with any obstacle through automatic swinging away. Afterwards, the share returns back by means of draw springs. The bottom share edge is provided with rubber for removal of snow on roads.

Are you interested?

Send us a non-binding request and we will get back to you.

If you have additional questions, contact us or come to our showroom in Prostějov.

Shop Šálek s.r.o.
Vrahovická 2527/5
796 01 Prostějov

Contacts
salekpv@salekpv.cz
+420 582 330 407

Download

MANUAL

Technical details

	ARS-120H	ARS-140H	ARS-165H	ARS-188H	ARS-205H	ARS-250H

Price without VAT	2,039.41 EUR	2,131.07 EUR	2,222.73 EUR	2,360.22 EUR	2,428.96 EUR	2,566.45 EUR
Price with VAT	2,467.69 EUR	2,578.60 EUR	2,689.51 EUR	2,855.87 EUR	2,939.05 EUR	3,105.41 EUR
Max. width	1200 mm	1400 mm	1650 mm	1880 mm	2050 mm	-
Min. width	1010 mm	1180 mm	1395 mm	1585 mm	1730 mm	-
Height	500 mm	500 mm	500 mm	500 mm	500 mm	-
Weight	85 kg	90 kg	95 kg	107 kg	117 kg	-
Maximum angular displacement	34	34	34	34	None	-
