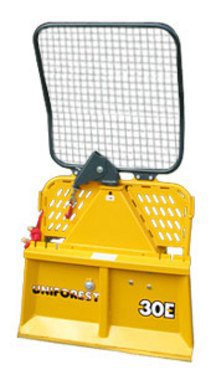

35E / 30E Mechanical Forestry Winch

This winch is designed particularly for forestry practices such as skidding. Principal machine parts are welded steel frame, main shaft, chain gear with clutch, winding drum
with steel rope, brake and guide roller. The winch is powered by a joint shaft coupling it with the tractor driving mechanism. This equipment is designed for coupling with all
types of compact tractors equipped with three-point hitches ISO 730/1 and providing PTO shaft speed of 540 rpm.

Are you interested?

Send us a non-binding request and we will get back to you.

If you have additional questions, contact us or come to our showroom in Prostějov.

Shop Šálek s.r.o.
Vrahovická 2527/5
796 01 Prostějov

Contacts
salekpv@salekpv.cz
+420 582 330 407

Technical details

	35E	30E

Price without VAT	3,116.41 EUR	2,978.92 EUR
Price with VAT	3,770.85 EUR	3,604.49 EUR
Pulling power	35kN	None
Mean rope speed	0,9 m/s	0,8 m/s
Length of rope / diameter	70/10m/mm	50/10m/mm
Recommended tractor output	16-45HP	16-34 HP
Width	1200 mm	1 000 mm
Length	450 mm	420 mm
Height without bars / with bars	1160/2000 mm	1060/2000 mm
Weight	245 kg	185 kg
Hinge of category	I ,II	I
Control	mechanical	mechanical

Accessories

Type	Name	Price without VAT	Price with VAT	Photo
BKH-316	PTO Shaft 316	187.90 EUR	227.36 EUR
