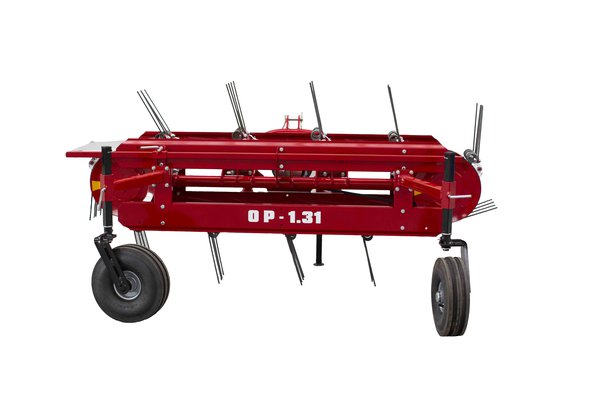

OP-1.32 P 1.31 Combinated Hay Maker


This combined hay maker is designed for hay tedding and raking and can be used also for leaves and moss raking etc. For hay tedding it is necessary to remove its swath shield. Its travel and rake speed is to be set according to proper hay tossing. Hay laying in swathes should be done with the swath shield, in case of greater bulks the swath shield should be removed again. This implement is driven by a cardan shaft that couples the tractor driving mechanism with the hay maker. These combined hay makers are designed for direct coupling with all types of compact tractors equipped with a three-point hitch.

Are you interested?

Send us a non-binding request and we will get back to you.

If you have additional questions, contact us or come to our showroom in Prostějov.

Shop Šálek s.r.o.
Vrahovická 2527/5
796 01 Prostějov

Download

Technical details

OP-1.32 OP-1.31
Length 1 100 mm 1 100 mm
Width 2 300 mm 1 900 mm
Height 860 mm 860 mm
Weight 100 kg 80 kg
Working width 1 850 mm 1 450 mm
Number of rakes 12 12
Operating speed Max. 6 km/h Max. 6 km/h
Input shaft speed 400 - 700 ot/min-1 400 - 700 ot/min-1
Output 0,6 - 0,65 ha/h 0,40 - 0,45 ha/h
Price without VAT 31,000 Kč 28,000 Kč
Price with VAT 37,510 Kč 33,880 Kč

Accessories

Type Name Price without VAT Price with VAT Photo
BKH-316 PTO Shaft 316 3,900 Kč 4,719 Kč

Multimedia OP-1.32 P 1.31 Combinated Hay Maker
